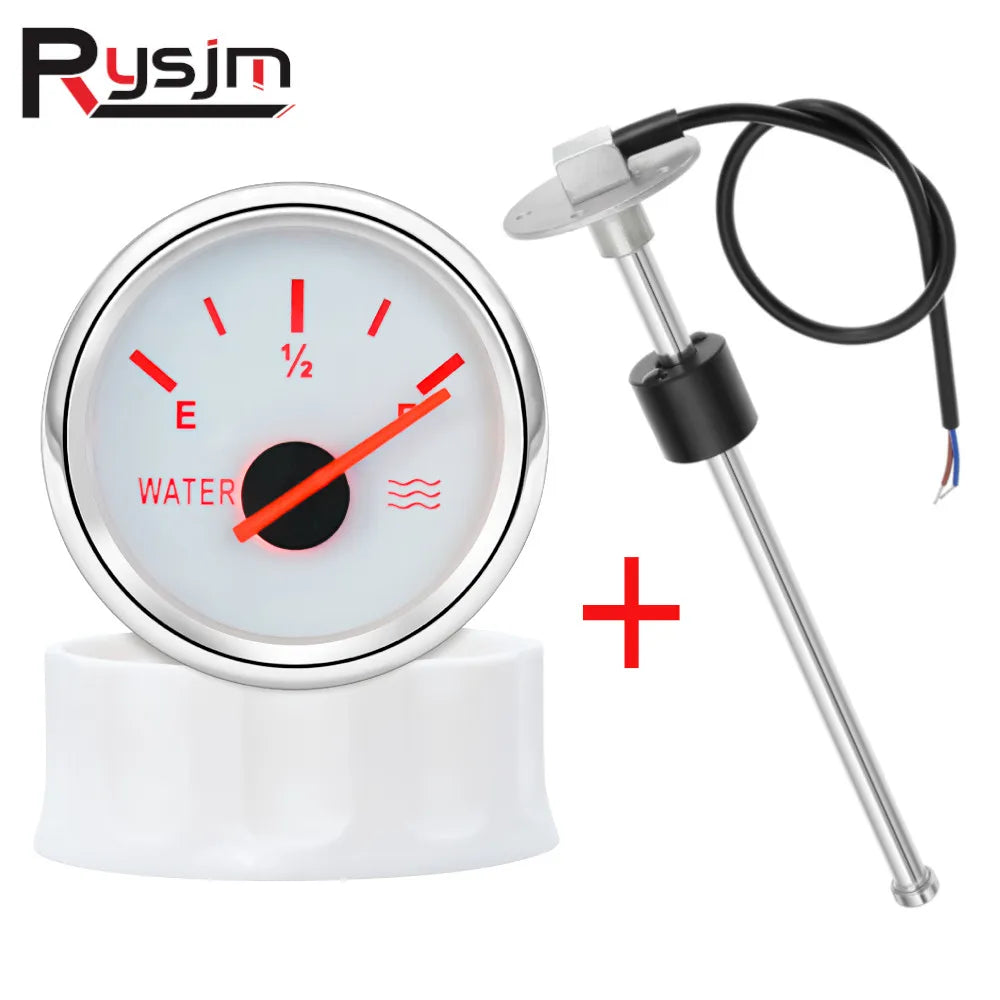

Water Level Sensor 0-190ohm Gauge with Fuel Sender Unit12V/24V
Water Level Sensor 0-190ohm Gauge with Fuel Sender Unit12V/24V
Regular price
€29,99 EUR
Regular price
€31,20 EUR
Sale price
€29,99 EUR
Unit price
/
per
Taxes and V.A.T included
Shipping included.
Couldn't load pickup availability
17 in stock

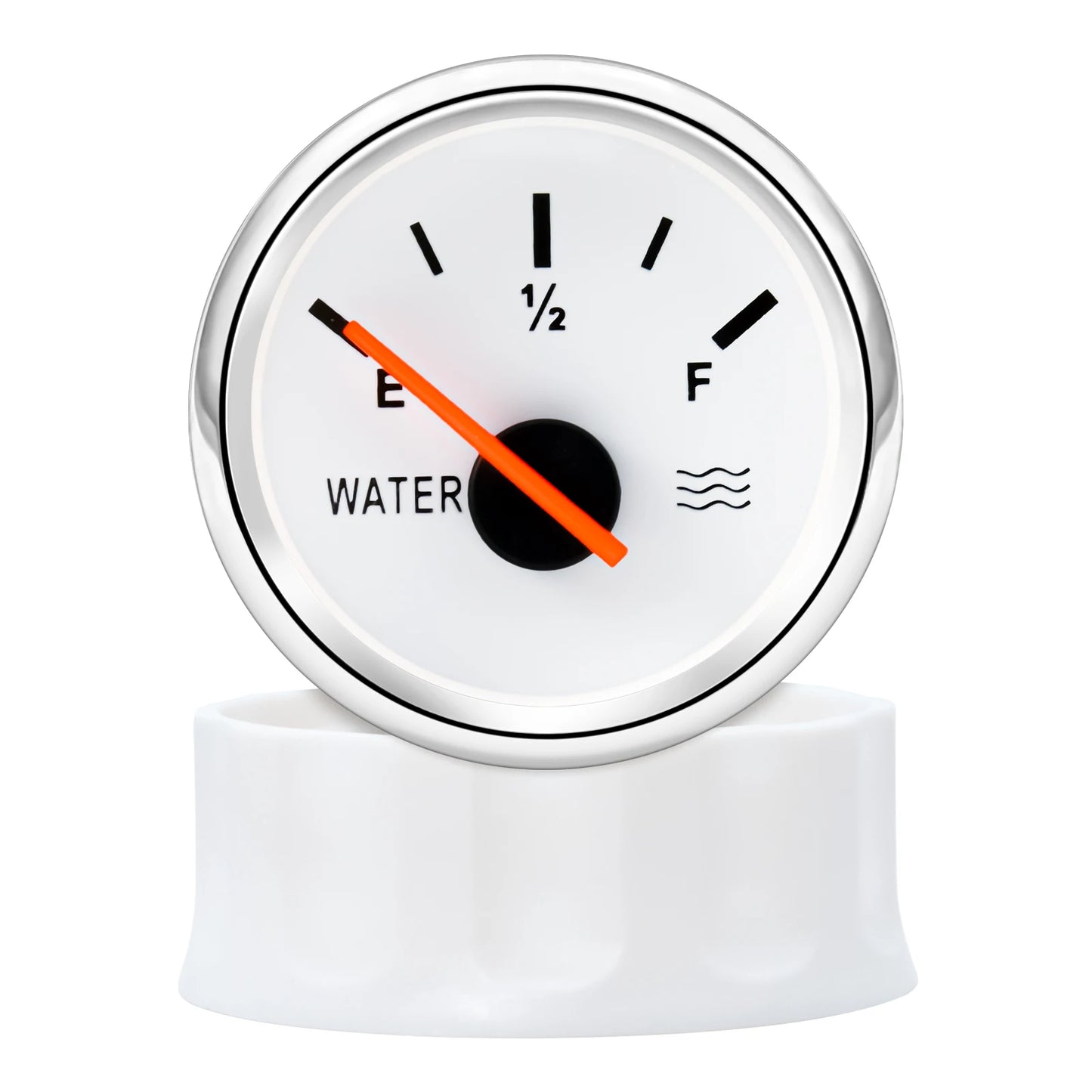

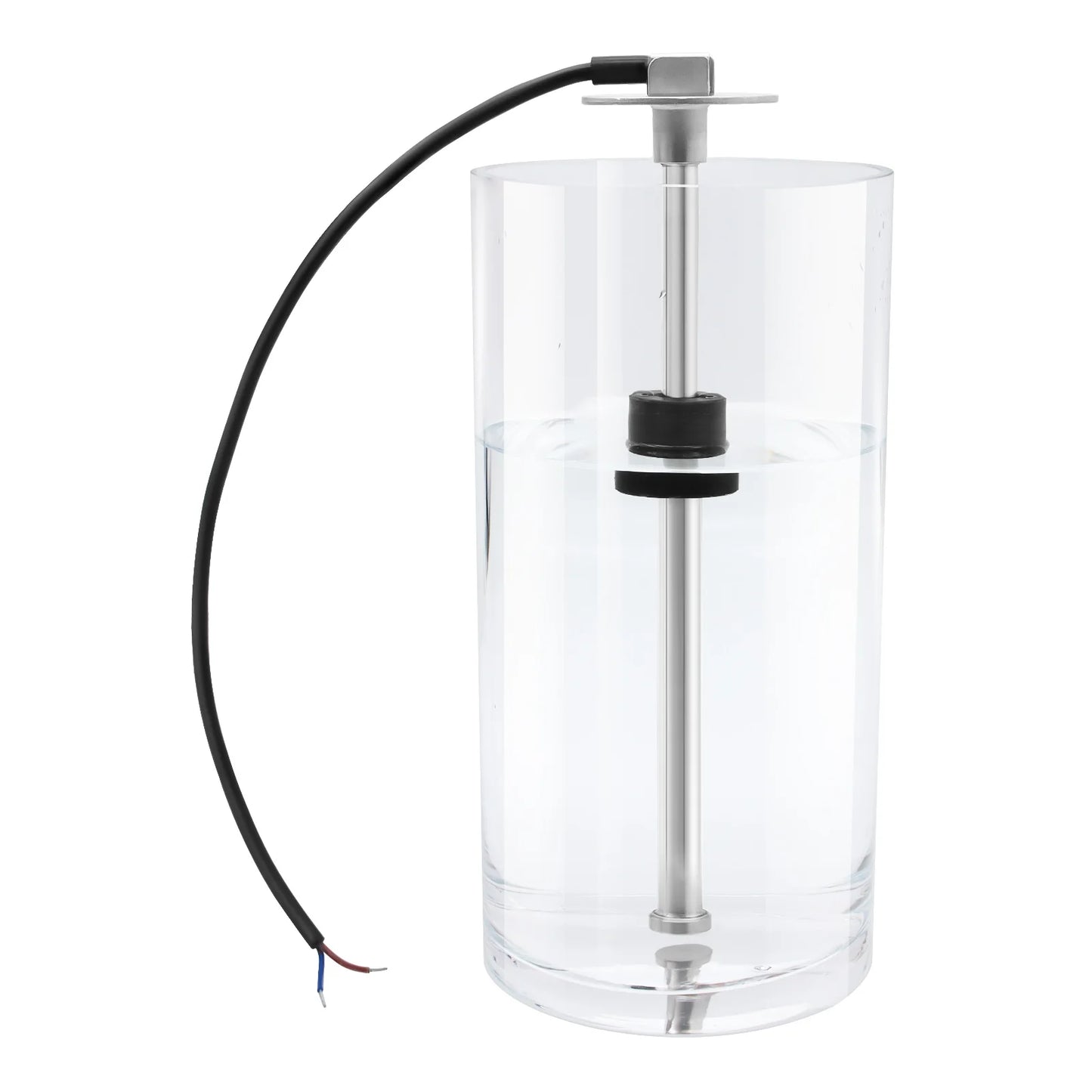

Monitor your vehicle's water levels accurately with our Water Level Sensor. Designed for cars, boats, and motorcycles, this gauge features durable stainless steel construction and advanced stepper motor technology for precise readings.
Technical Data:
- Material: Stainless Steel 316L + Anti-fog Glass

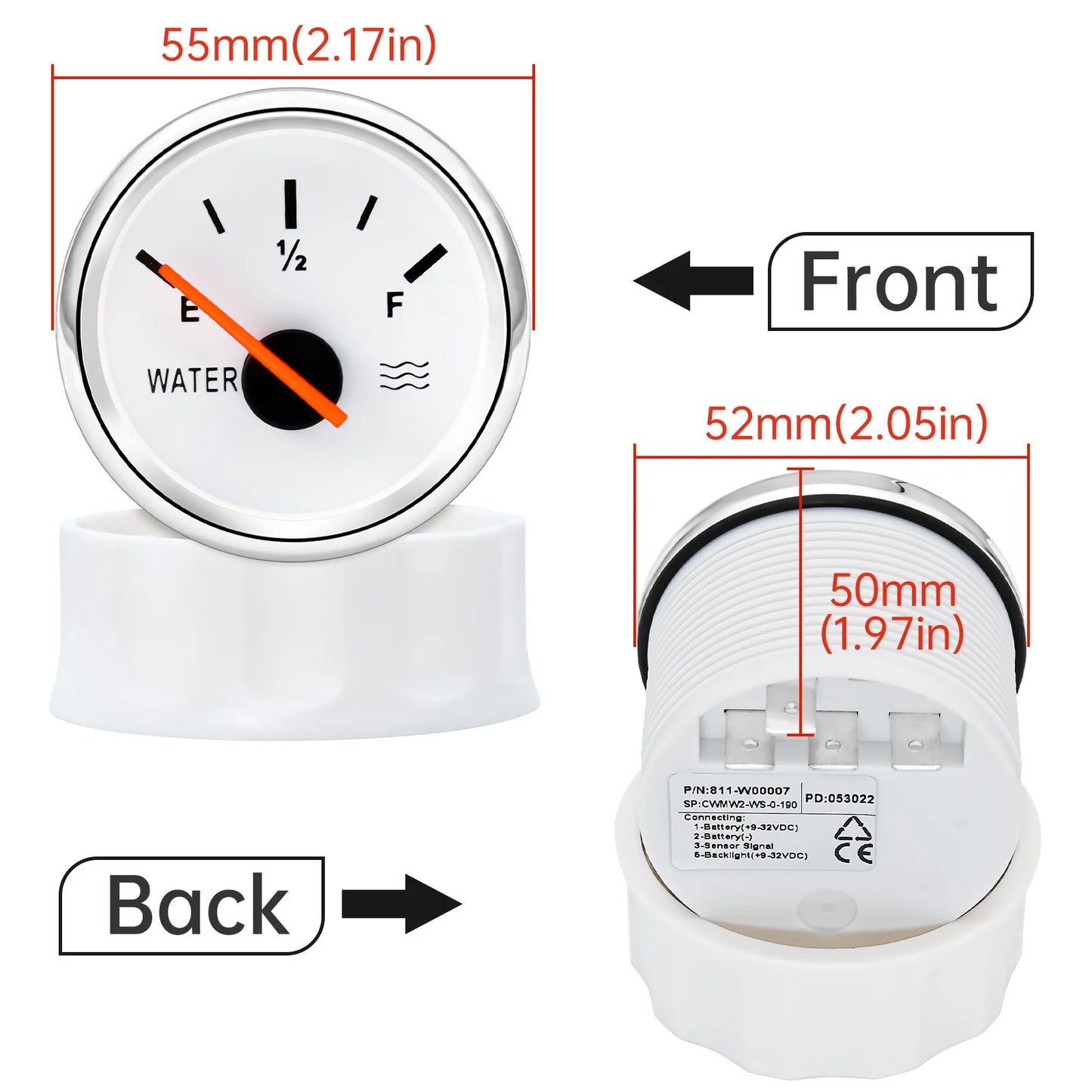

- Installation Diameter: Φ52mm (2-1/16")
- Indication Range: E~F (Empty to Full)
- Connection Method: Row Insert
- Backlight Color: Red
- Working Voltage: 9~32V DC
- Input Signal: 0~190ohm
Specifications:
- Working Current: ≤60mA
- Operating Temperature: -30℃ to +75℃
- Storage Temperature: -40℃ to +85℃
- Protection Grade: IP67
- Color Options: Black, White
- Condition: New
- Package: Neutral Box
Features:
- Durable Construction: Stainless Steel 316L front cover for long-term use in acidic and humid environments.
- IP67 Rated: Waterproof and dustproof for reliable performance.
- Stepper Motor Technology: Ensures high precision, low power consumption, and long life.
- Anti-fog Glass: Curved glass design prevents fogging.
- Wide Voltage Range: Operates effectively between 9-32V, with a maximum voltage of 36V.

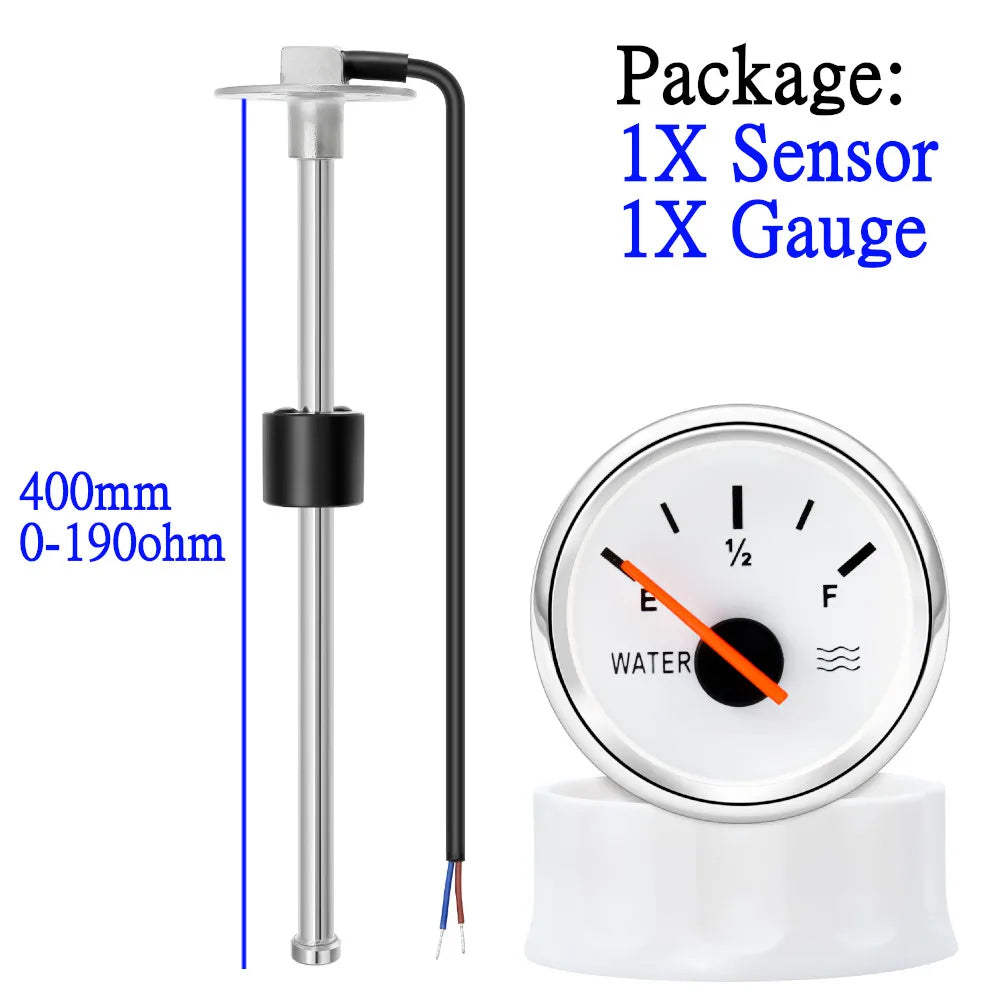

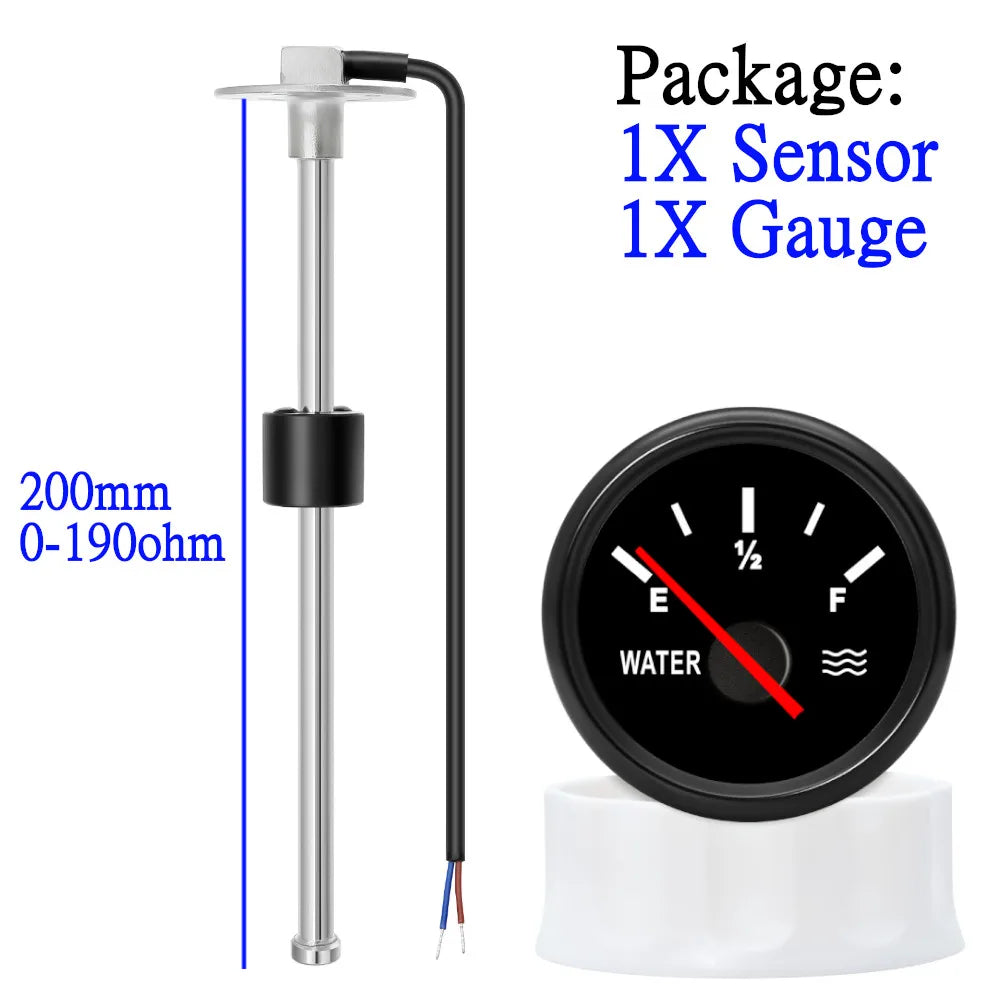

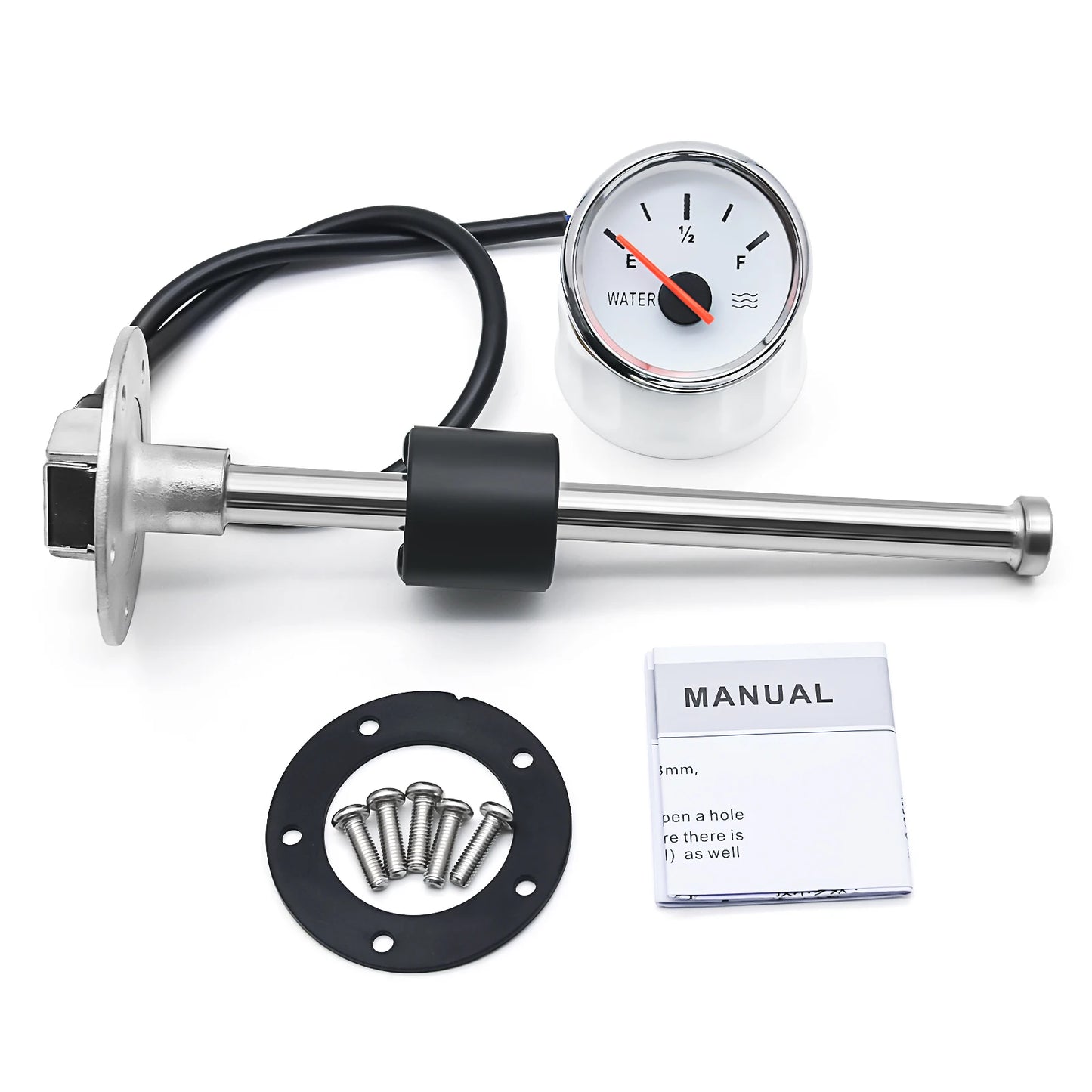

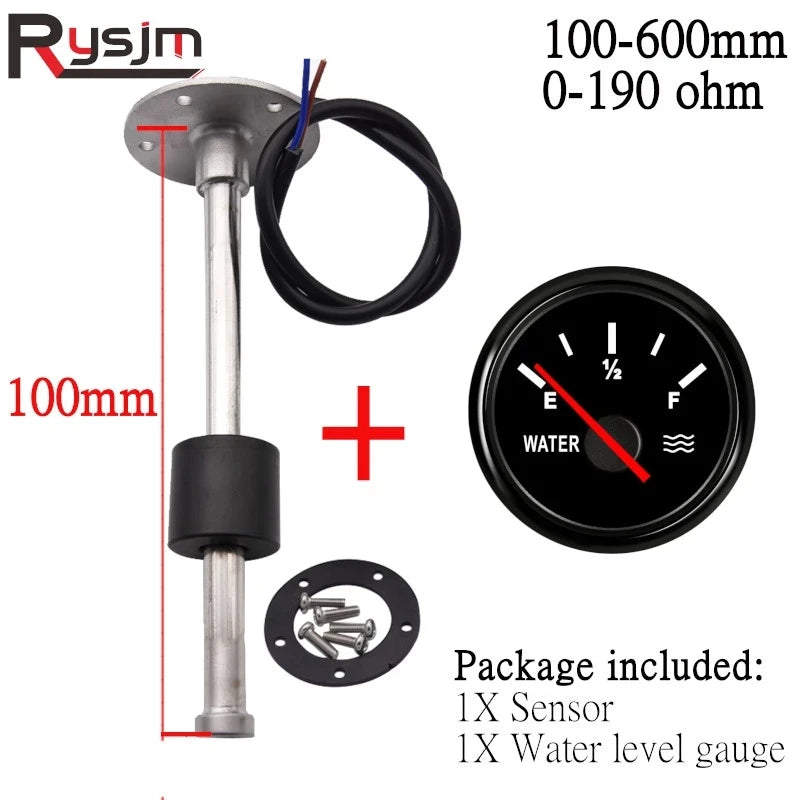

Package Includes:
- 1x Sensor
- 1x Water Level Gauge
- 1x Installation Instruction

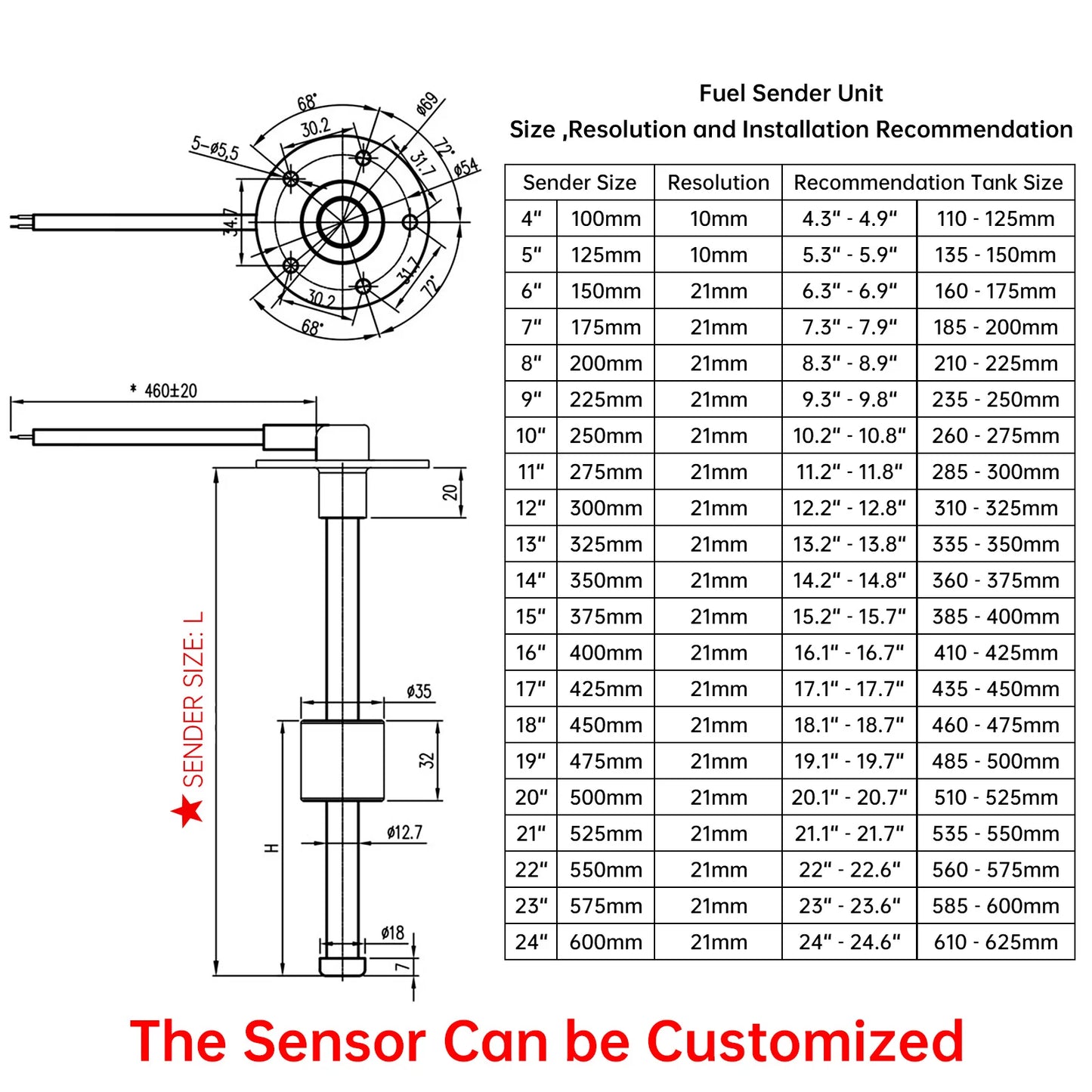

Custom Sizes Available:

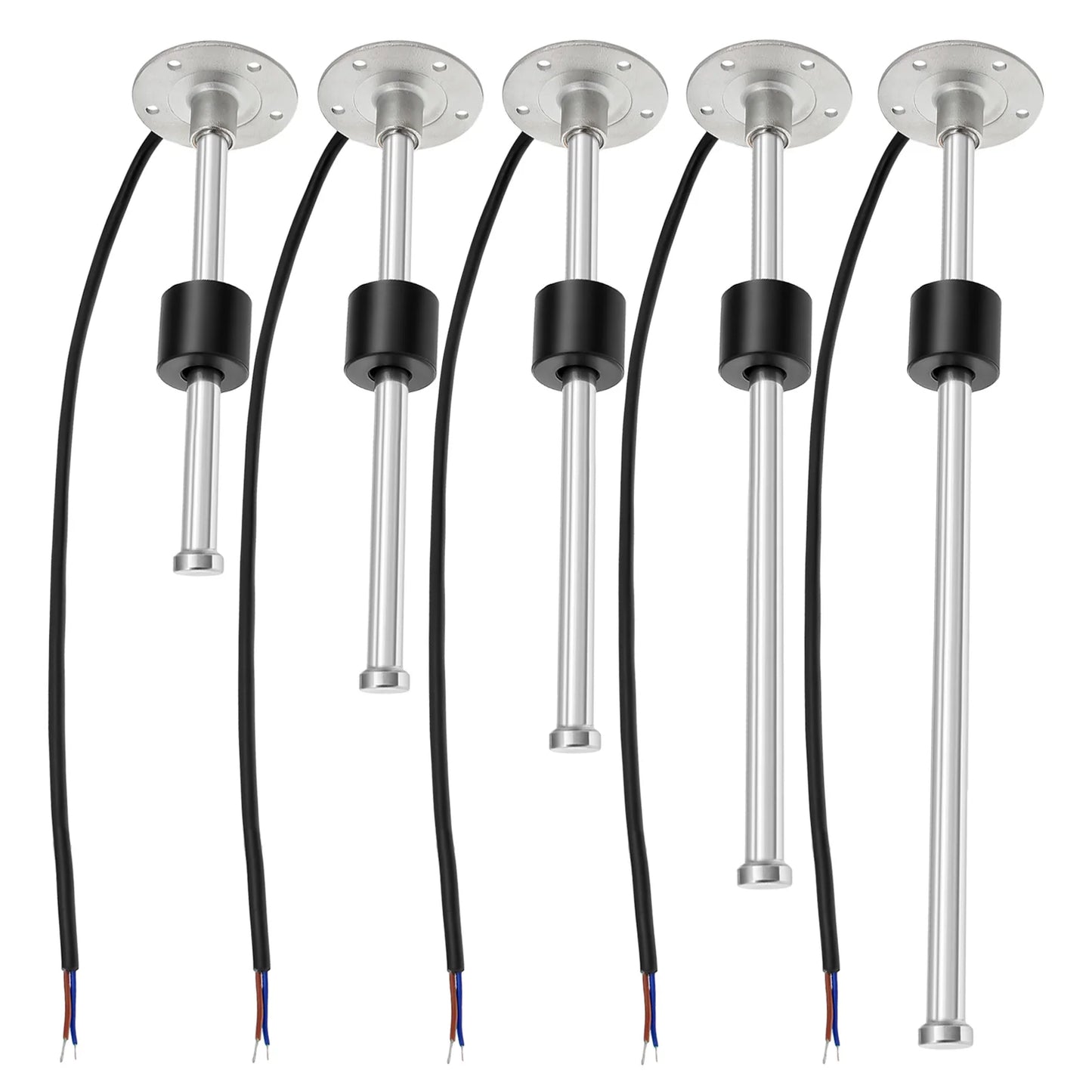

- Sensor Lengths: 100mm, 125mm, 150mm, 175mm, 200mm, 225mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, and more.
-

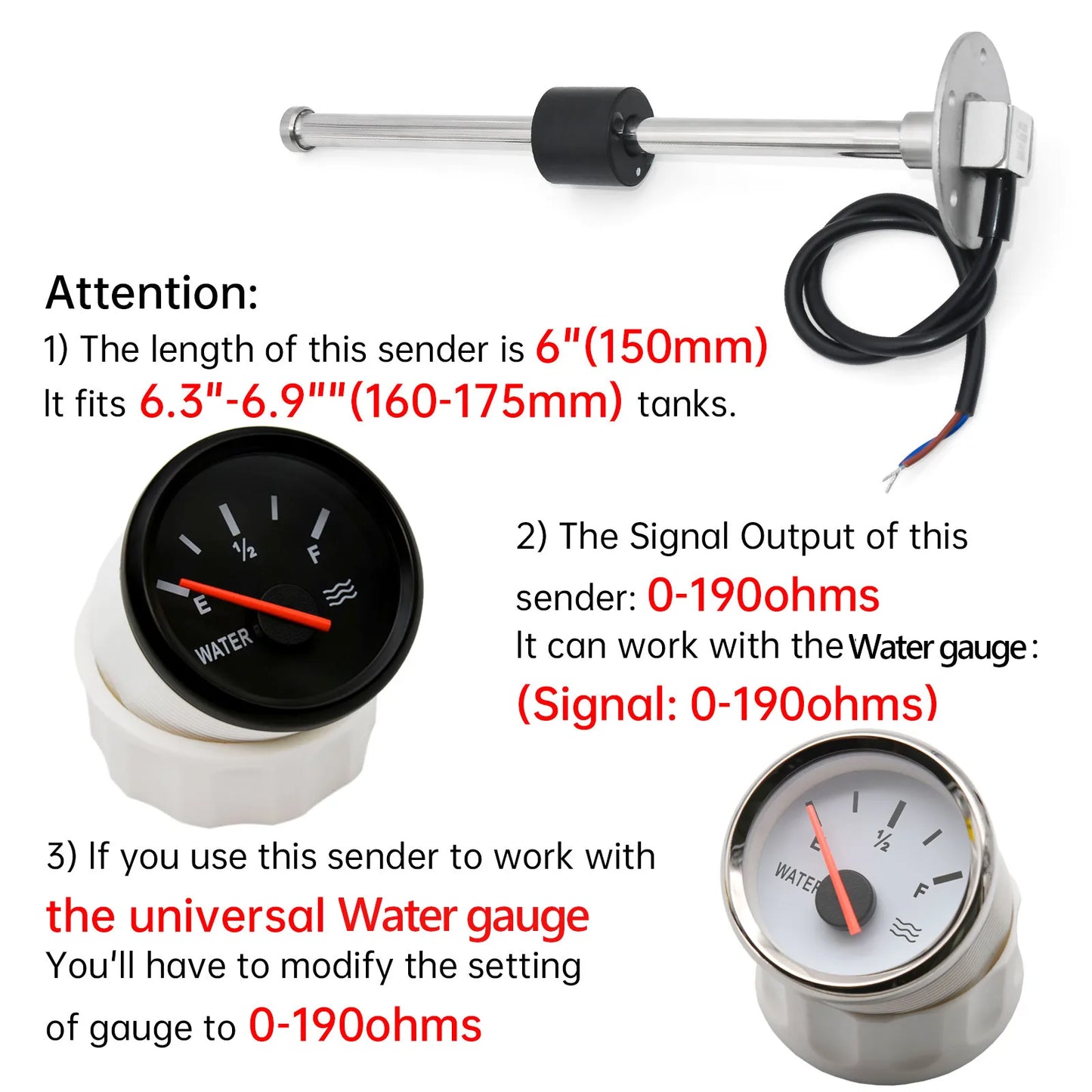

Output Signal Options:
- 0-190 ohm (Standard European)
- 240-33 ohm (Standard American)
Notes:
- Ensure signal parameters match your vehicle before purchasing.
