Stay connected and stay safe on the water with the VHF Marine Radio Retevis RM40. This IPX7 waterproof two-way radio is a reliable and essential communication device for marine enthusiasts. With built-in GPS, DSC, MOB Float Alarm, and a powerful 5W output, you can easily communicate with your crew or call for assistance when needed. The LCD display ensures clear visibility of important information, and the ergonomic design makes it comfortable to hold and use. Don't compromise on communication quality during your marine adventures. Invest in the VHF Marine Radio Retevis RM40 from Sail Smart Outlet and enjoy reliable, waterproof, and feature-rich communication on the water.

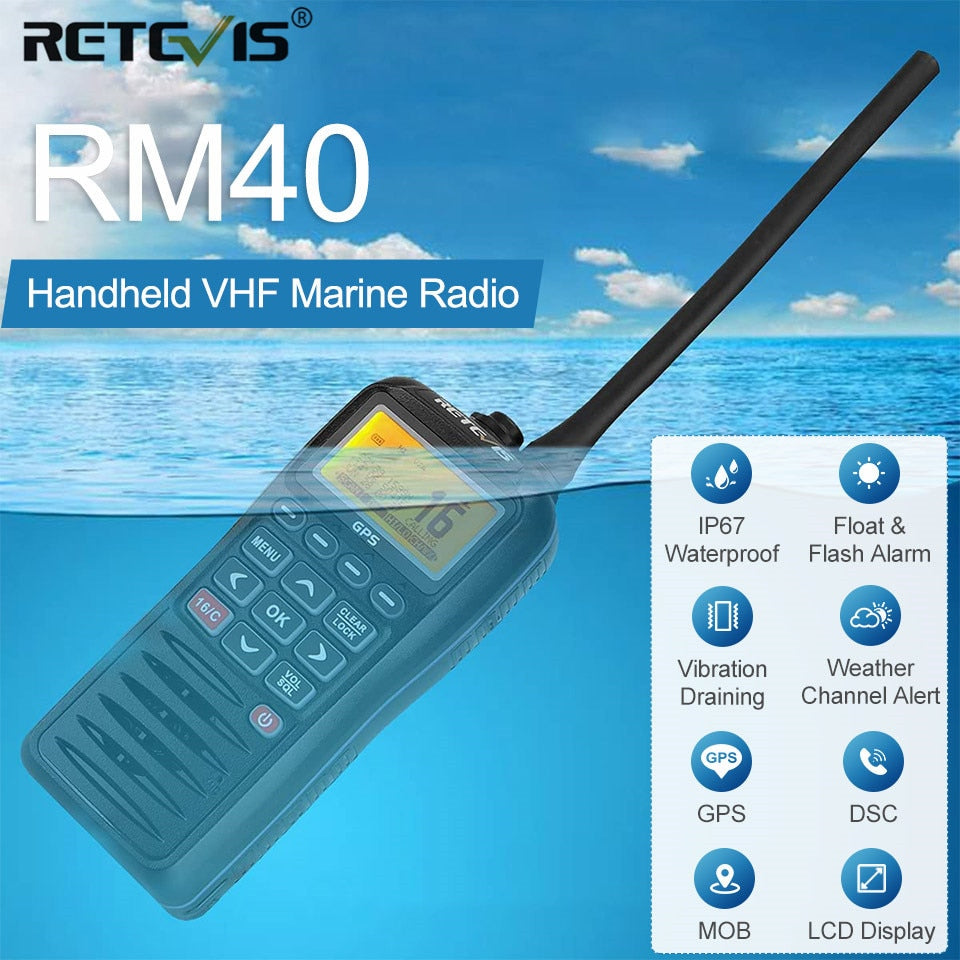

VHF Marine Radio Retevis RM40 IPX7 Waterproof Two Way Radio Communicator GPS DSC MOB Float Alarm Walkie Talkie LCD 5W Marine HT
Description:
-
Built-in GPS, Built-in DSC, MOB Function
-
IPX7 Waterproof Construction(1 m depth of water for 30 minutes)
-

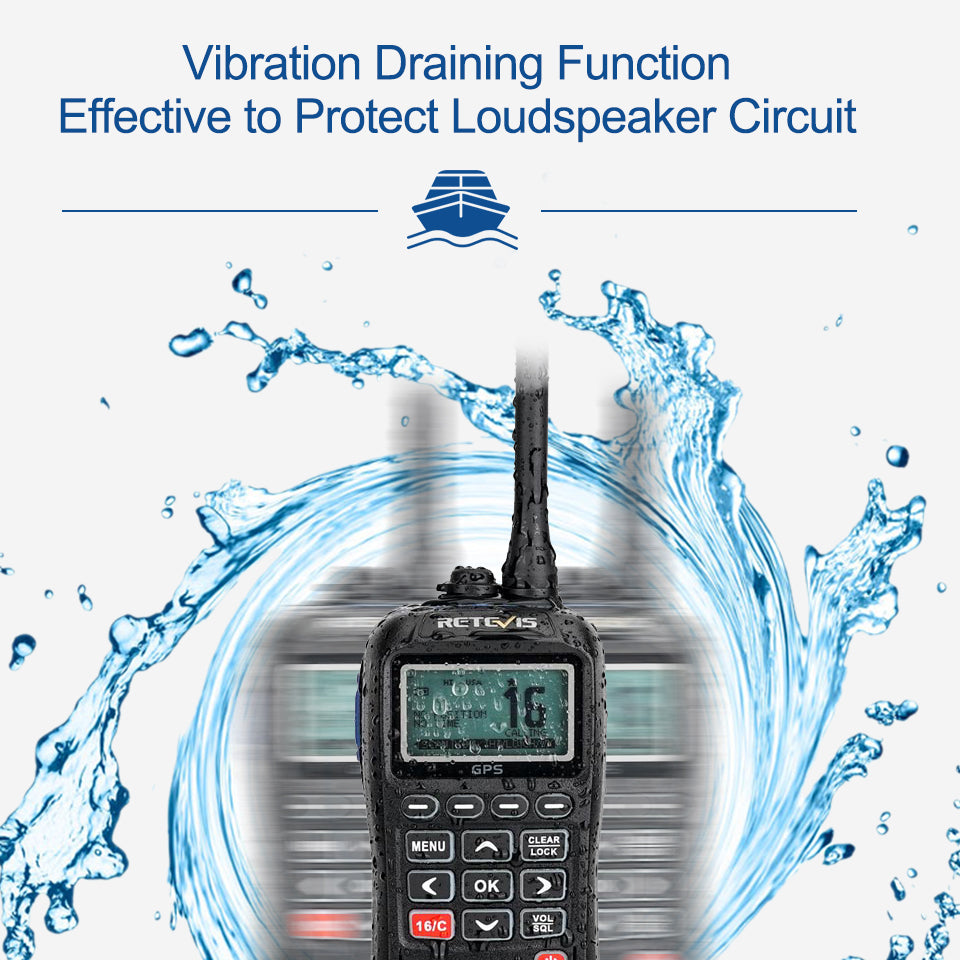

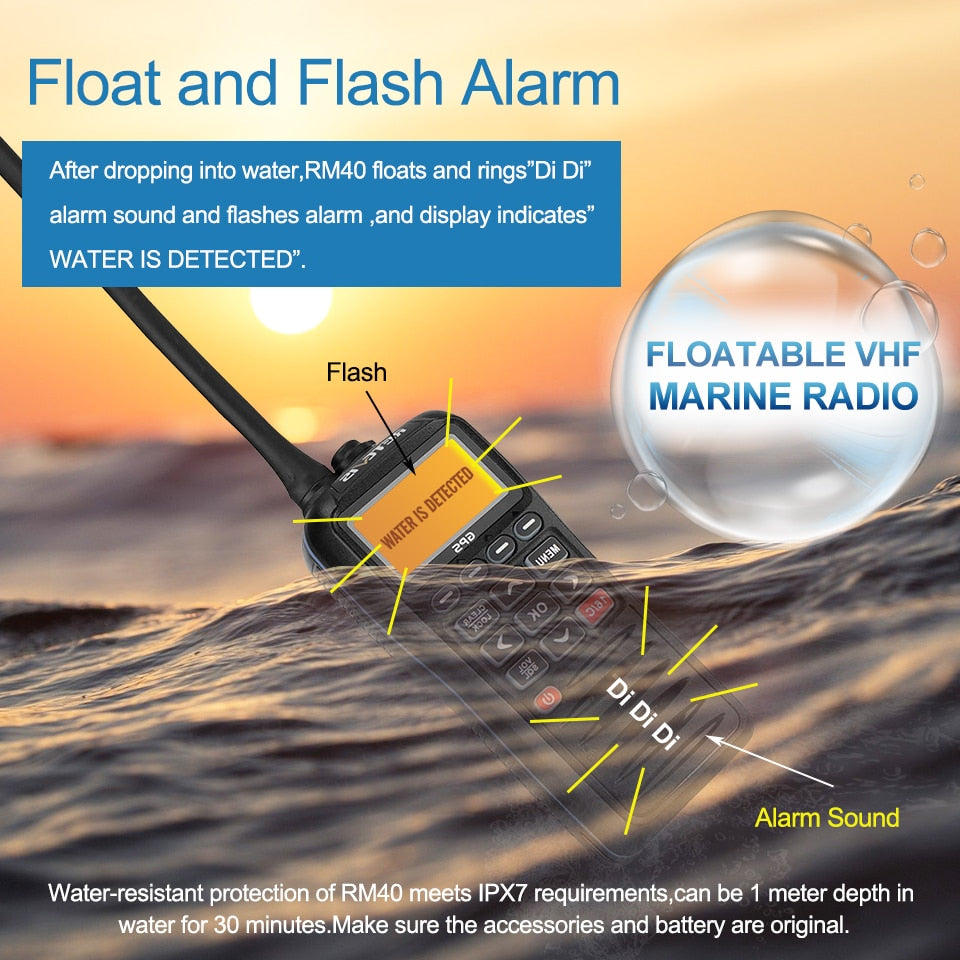

Floats and Flashes Alarm, Vibration Draining Function
Features:
Weight: 315g(with battery,antenna and belt clip)
Weather Channel Receive: YES

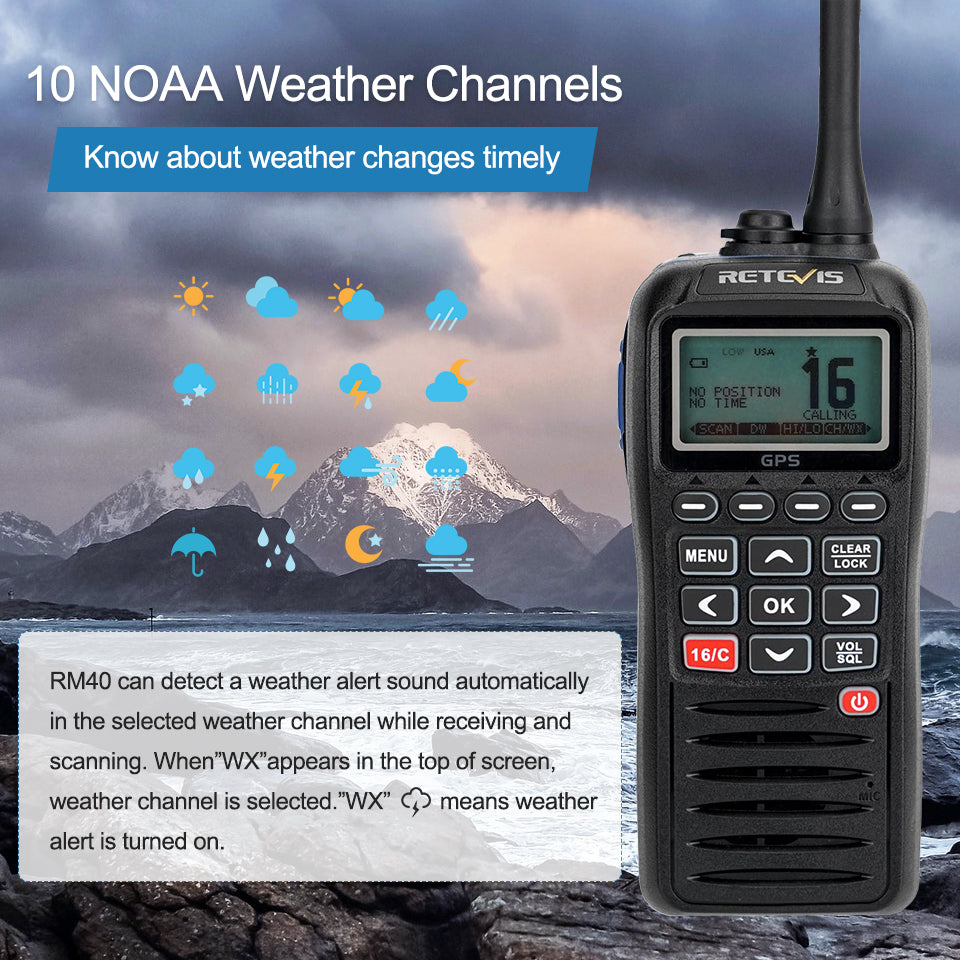

Weather Channel: 10 NOAA
Waterproof / Water-Resistant: IP67
Walkie Talkie Type: Portable
Type of Emission: FM(16K0G3E)/DSC(16K0G2B)
TIFF Warm Boot: less than 10 seconds
TIFF Cold Boot: less than 1 minute

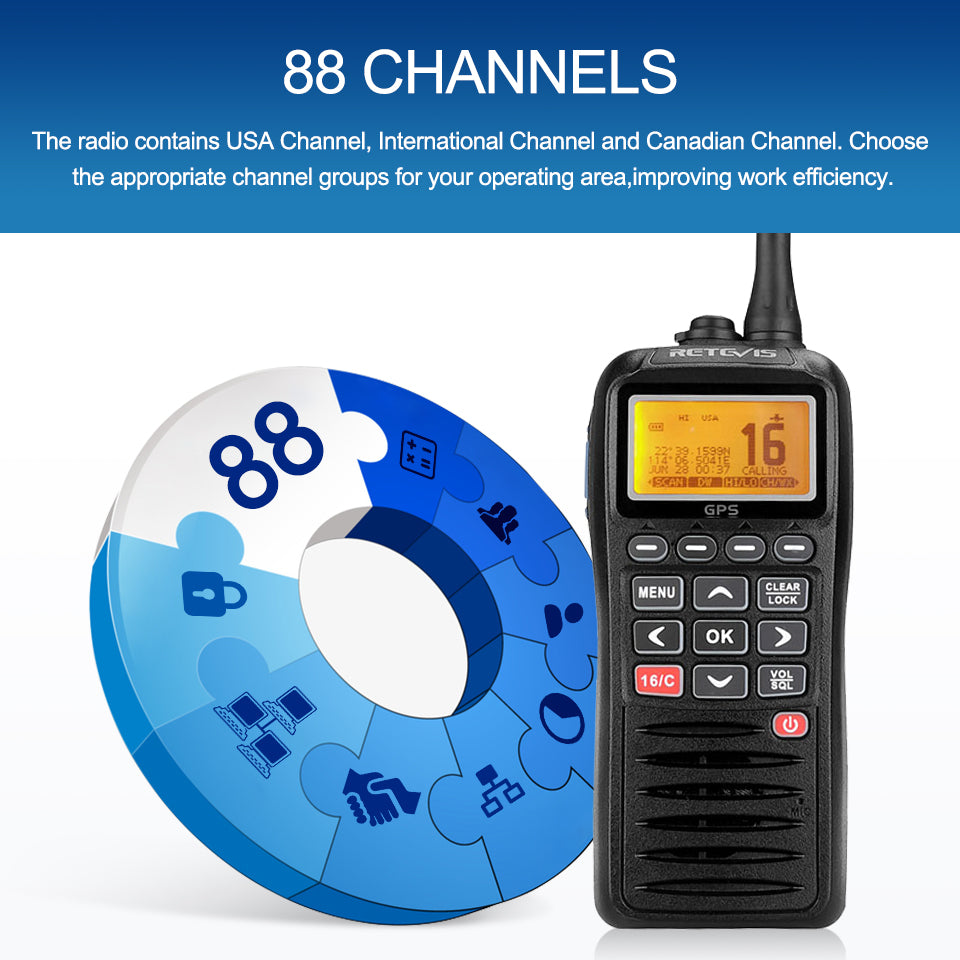

Storage Channel: 88CH
RF power: 5W/1W
Output Power(w): 3w-5w
Origin: Mainland China
Operating Temperature: -15℃ ~ + 55℃
Model Number: RM40

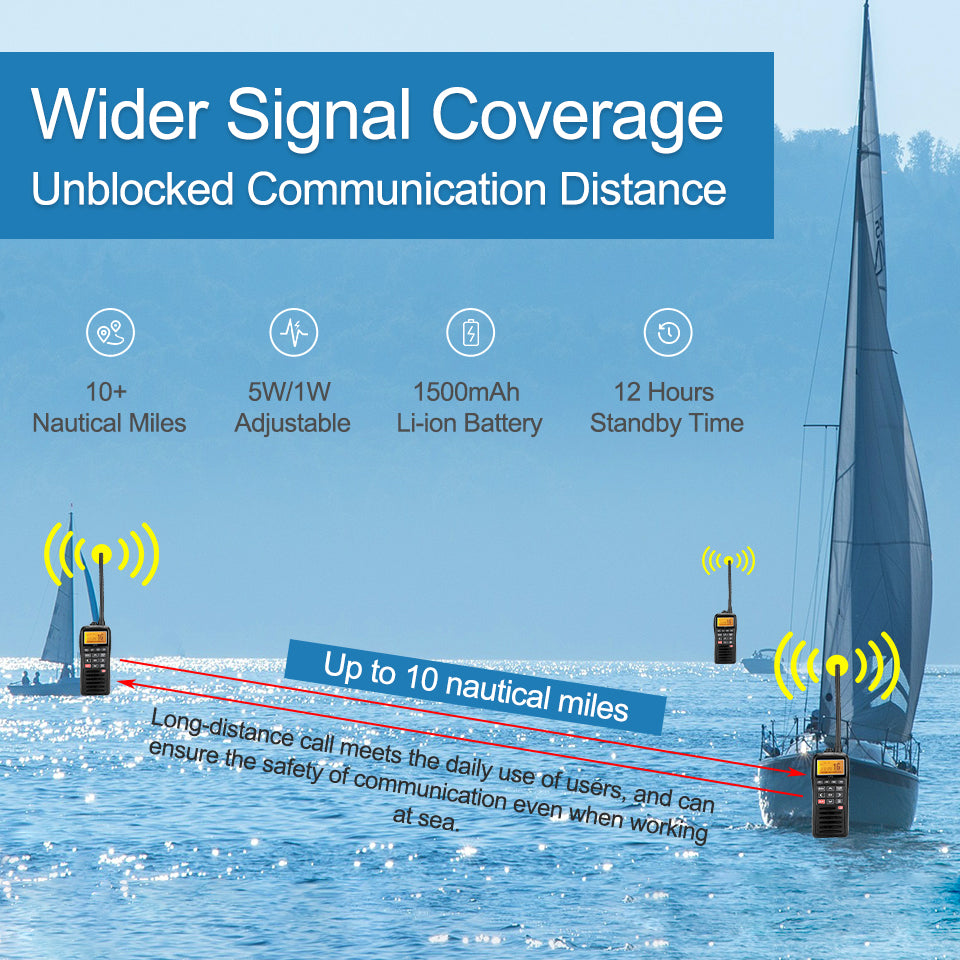

Maximum Range: 5km-10km
Maximum Frequency Deviation: ±5kHz

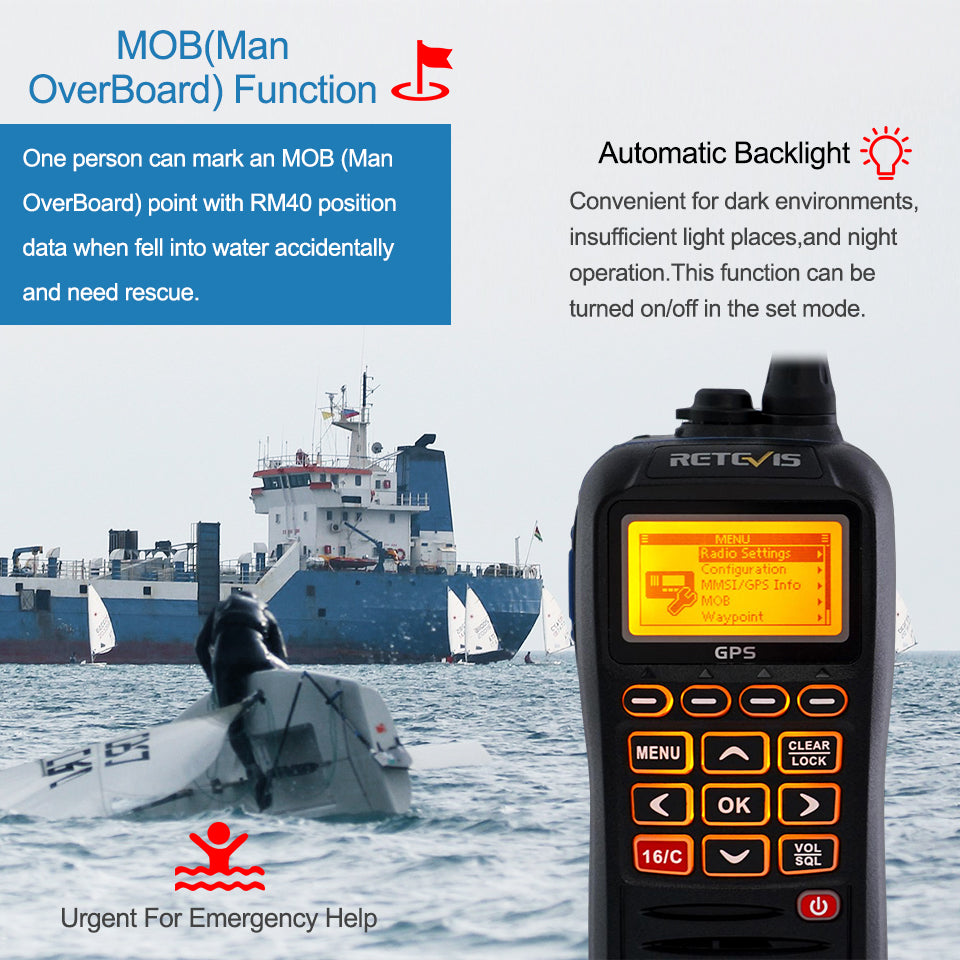

MOB Function: YES
Is_Display: Yes
Horizontal position Precision: less than 10 meters
Frequency Stability: ±10ppm
Frequency Range: TX:156.025-157.425MHz,RX:156.050-163.275MHz

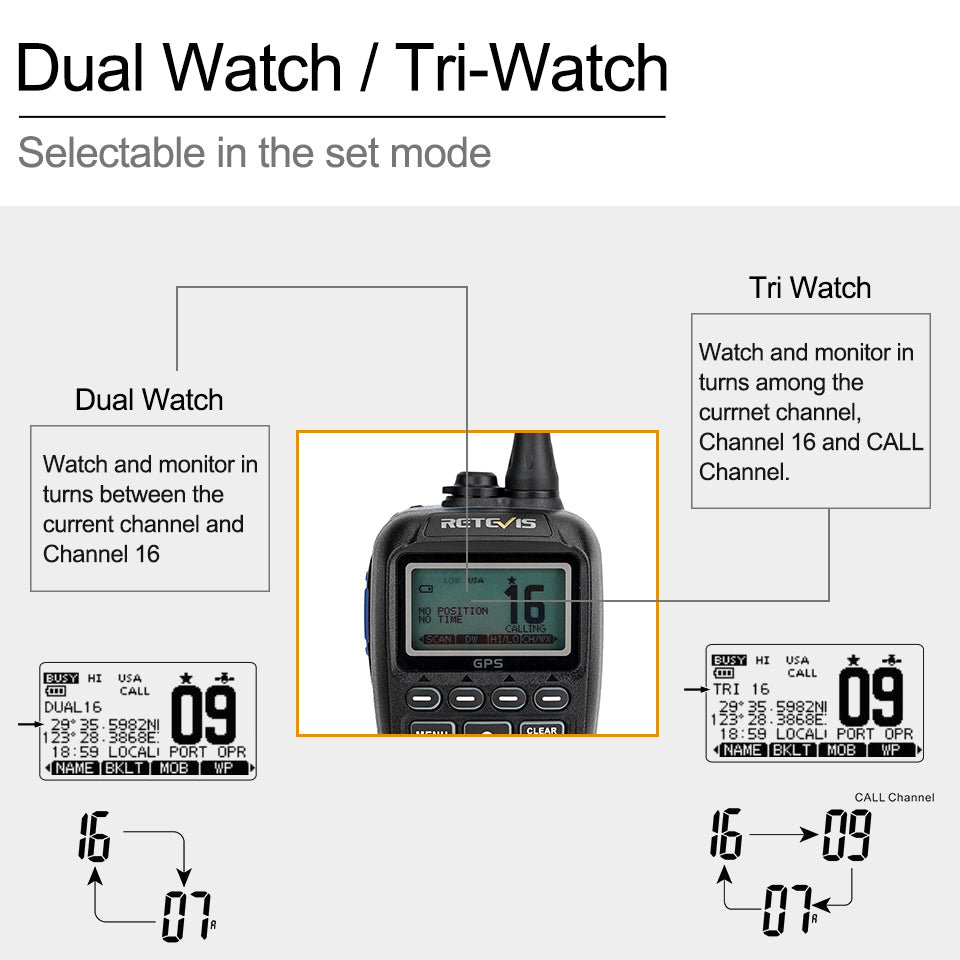

Dual/Tri-watch Functions: YES

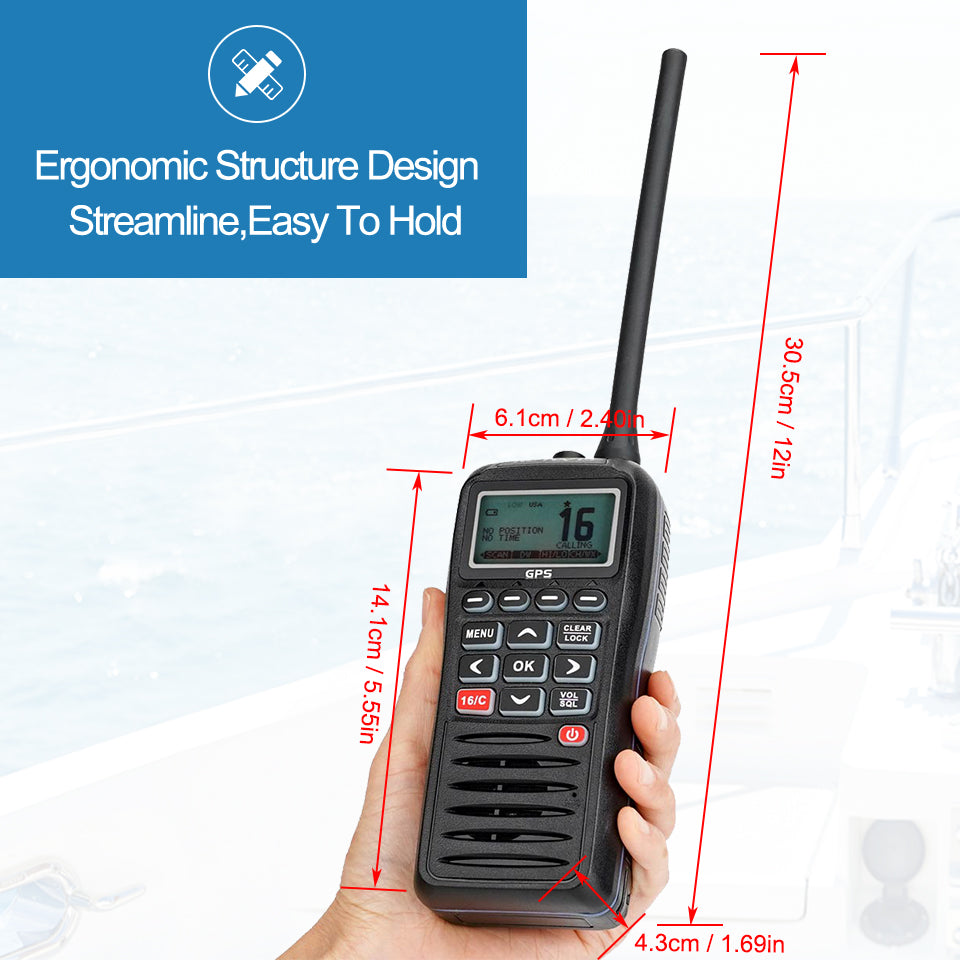

Dimensions: 61*141*43mm
Certification: CE

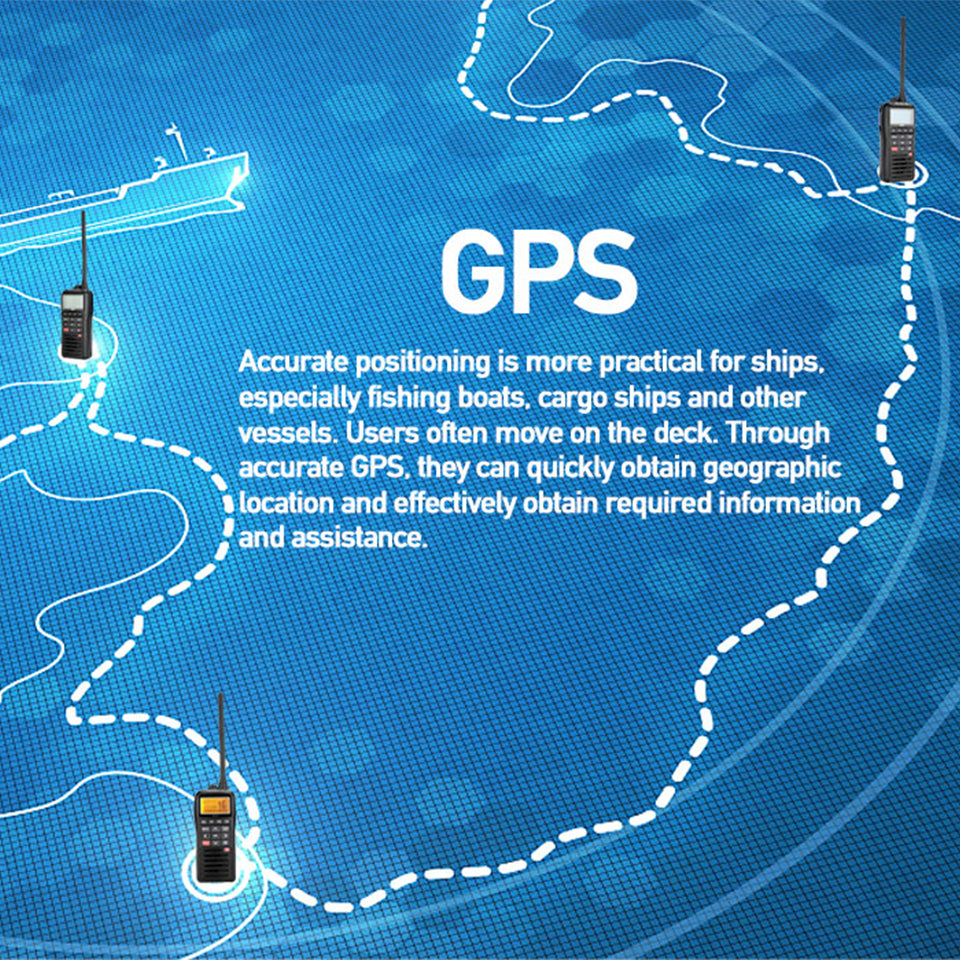

Built-in GPS: YES
Built-in DSC: YES
Brand Name: RETEVIS
Battery Pack: DC7.4V,1500mAh
Battery Capacity(mAh): 1500mAh

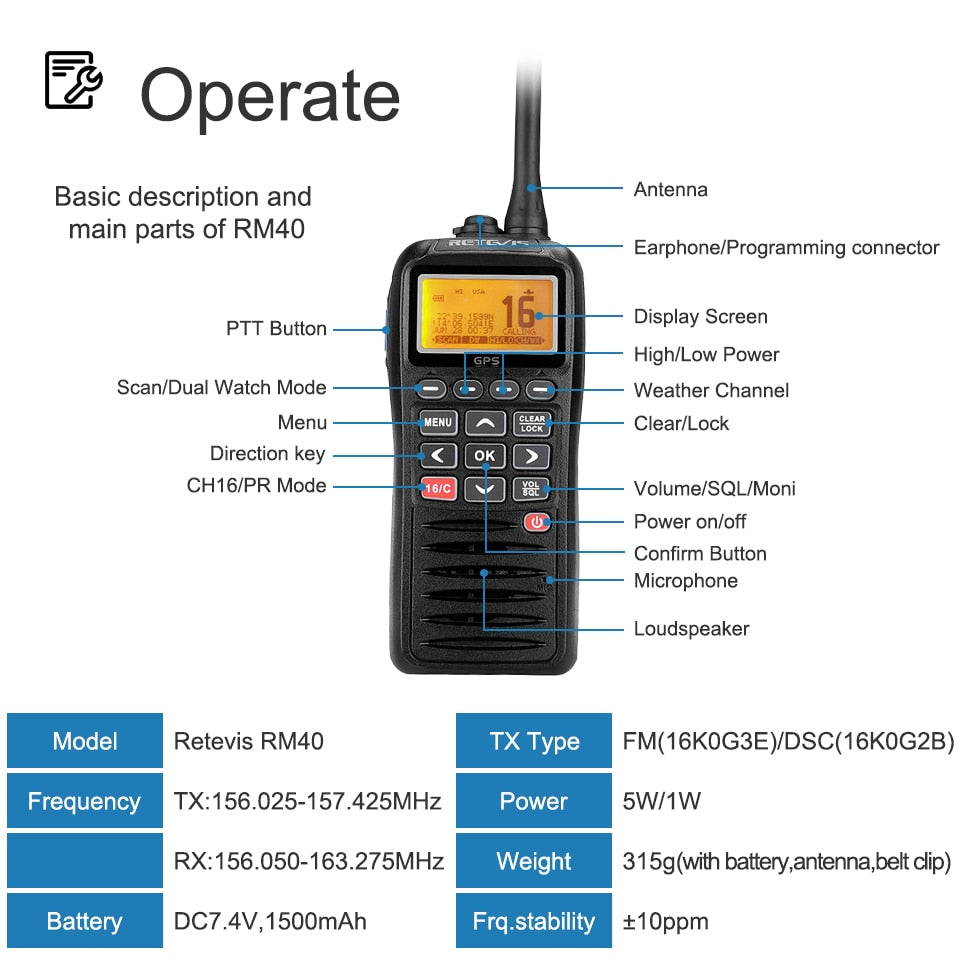

Technical Parameters:
|
General
|
|
Frequency Range
|
TX：156.025-157.425MHz
|
|
|
RX：156.050-163.275MHz
|
|
Type of Emission
|
FM(16K0G3E)/DSC(16K0G2B)
|
|
Frequency Stability
|
±10ppm
|
|
Battery Pack
|
DC7.4V,1500mAh
|
|
Operating temperature
|
-15℃ ~ + 55℃
|
|
Dimension(HxWxD)
|
61*141*43mm
|
|
Weight
|
315g（with battery, antenna and belt clip）
|
|
Waterproof Level
|
IPX7
|
|
Receiver
|
|
Receiving sensitivity
|
≤0.22μV
|
|
Squelch Sensitivity
|
≤0.22μV
|
|
HUM and Noise
|
≥40dB
|
|
Adjacent Channel Selectivity
|
≥70dB
|
|
Spurious Response Rejection Ratio
|
≥70dB
|
|
Intermodulation Rejection Ratio
|
≥68dB
|
|
Audio Output Power
|
≥0.5W(10%)
|
|
Transmitter
|
|
RF power
|
5W/1W
|
|
Maximum Frequency Deviation
|
±5kHz
|
|
Spurious Emission
|
≤0.25μW
|
|
Adjacent channel power
|
≥70dB
|
|
Audio Harmonic Distortion
|
≤10%
|
|
Current Drain
|
≤1.5A(High Power)
|
|
|
≤0.7A(Low Power)
|
|
|
≤0.2A(Maximum Audio Output)
|
|
GPS Receiver
Apply to long-term tracking（when signal strength≥-130dBm，5 satellites visible）
|
|
TIFF Cold Boot
|
＜1 minute
|
|
TIFF Warm Boot
|
＜10 seconds
|
|
Horizontal position Precision
|
＜ 10 meters
|
