Solar Panel System & Charge Controller & Inverter
Solar Panel System & Charge Controller & Inverter
997 in stock

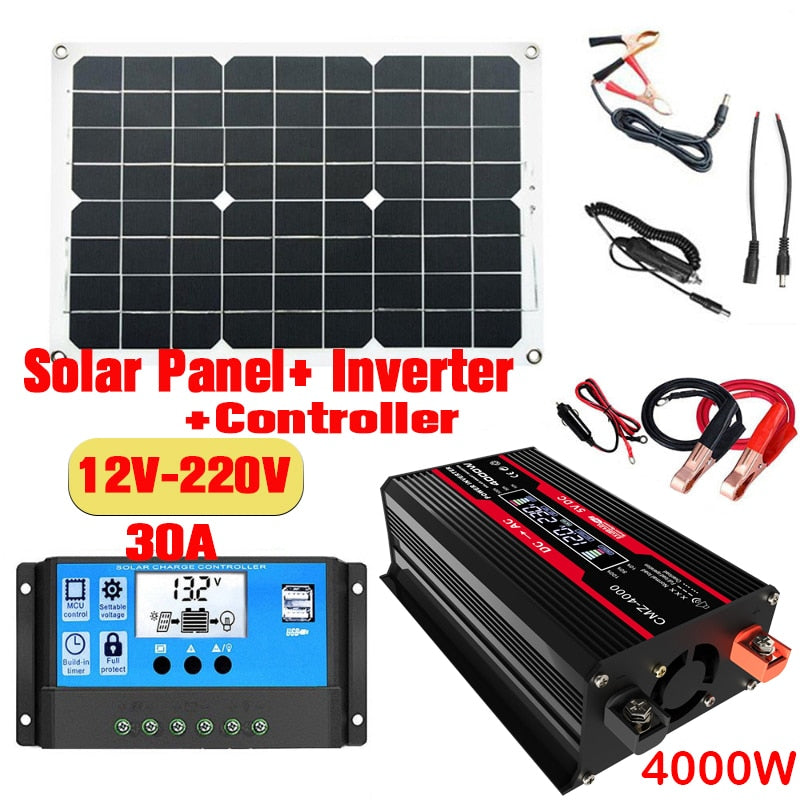

Stay powered even off the grid with this complete solar panel system. Featuring a solar panel, charge controller, and an inverter, this system will ensure reliable energy supply wherever you are. Harness the sun’s energy, reduce energy cost, and save the planet.
* LED Green & Red Work Lights: When inverter work normal, the green LED Lights work and tell you it is working well, but when it is on protection status, such as low voltage, high voltage, over temperature, or over load, the Red Led Lights will light up and you need to turn off the inverter, and check which protection function is work, and try to solve it then the inverter can work again.
* LED Voltage Screen display: LED Display shows the battery Input voltage, output voltage. Cigarette lighter cable can supply power for device easily. If the output power is higher than 150W, please using the Crocodile Clips to a battery.
* Fast Charging Dual USB ports: One AC Outlets and two USB ports can offer 100% fast charging for Mobile phones, computers, laptop, breast pump, Nebulizer, Razors, medical rescue device, emergency equipment etc, can be as an Emergency Power Supply
* Multi Protection: Built-in fuses, safe charging design and cooling fan prevents the car power converter from over-heat, saving power and energy. Over voltage, overload, over-current, short circuiting, under-voltage, overheating, short circuit protection.
* Lightweight design &Top Quality: Lightweight and compact, ideal for vacations, camping and work trips. It can be plugged into almost any 12V power output vehicle, providing charging opportunities anywhere.
What Size Power Inverter Do I Need?
The size you choose depends on the watts (or amps) of what you want to run (find the power consumption by referring to the specification plate on the appliance or tool). We recommend you buy a larger model than you think you'll need (at least 10% to 20% more than your largest load).
Specification:

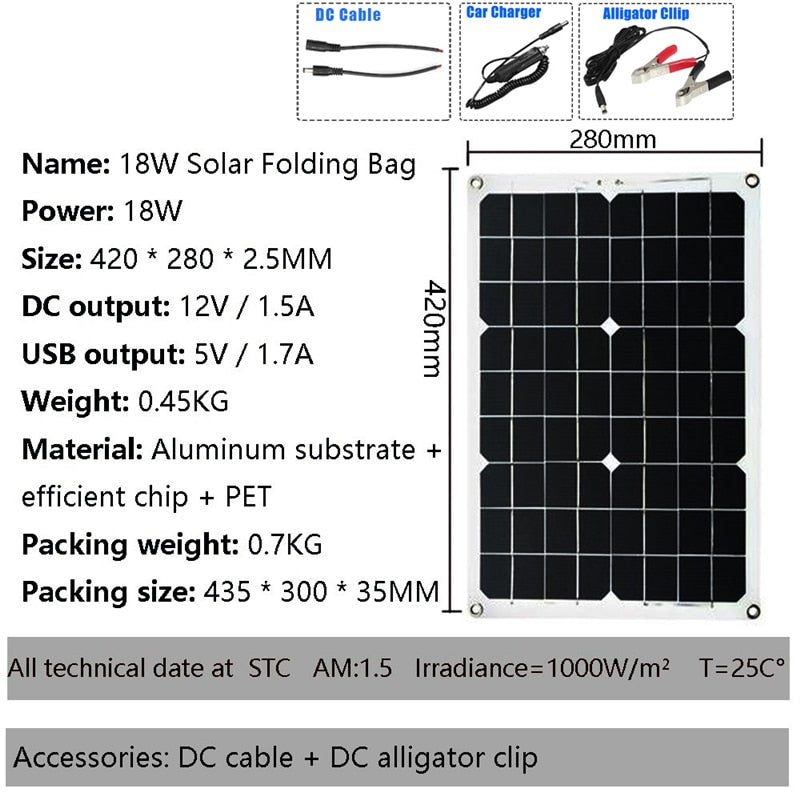

1. Solar Panel 18V18W:
Power: 18W± 5%
Size: 420x280x2.5mm
DC output: 12V/1.5A
USB output: 5V/1.7A
Weight: 0.7kg
Type: Mono Solar Panel
Material: Aluminum substrate/plastic(It depends on the style you choose)
Output accessories: DC cable + DC alligator clip

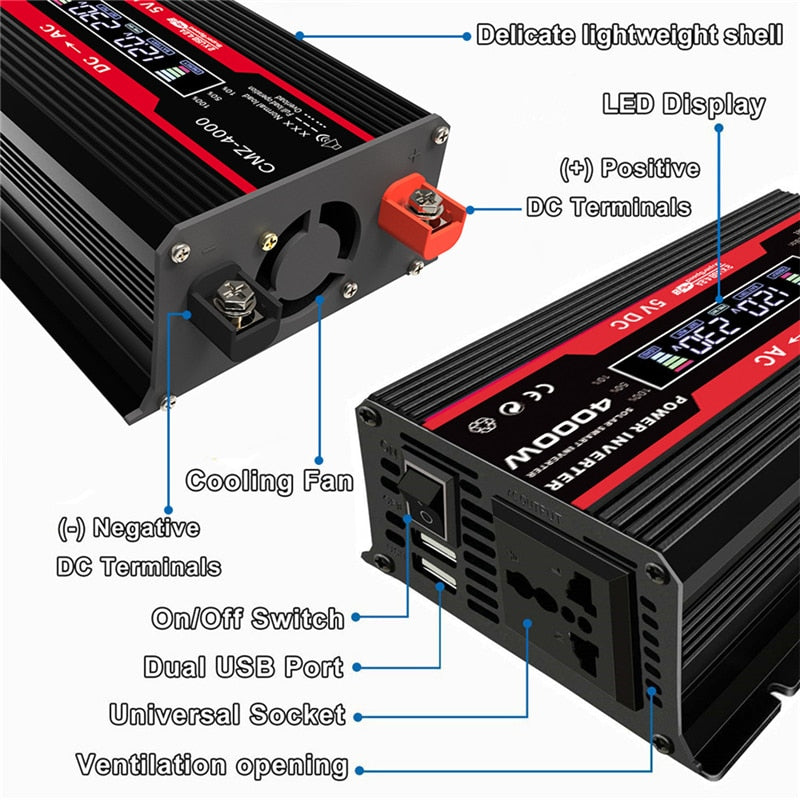

2. Modified Sine Wave Inverter :
Features:
* 4000W vehicle power inverter, convert DC 12V to AC 110V/220V, the output voltage is constant and accurate.
* With 1 universal AC outlet and 2 USB charging ports, it is ideal for charging smartphones, tablets, laptops, game consoles, TVs, car refrigerators, car vacuums, lights and other electronic devices.
* The power inverter is made of high-quality aluminum alloy shell, built-in cooling fan, when the working temperature of the inverter reaches 45 ℃, the fan will automatically start.
* Intelligent LCD digital display, input and output voltage are displayed at the same time, which is safer and more convenient to use.
* Built-in overcharge protection, high voltage protection, overload protection, overheat protection, short circuit protection, overcurrent protection, positive and negative connection protection, low voltage protection, safe and reliable.
Peak power: 4000W
Rated power:300W (Please make sure that the total rated power of the connected devices is ≤ 300W).
Conversion efficiency: >90%
Size: 200*112*56mm/7.9"*4.4"*2.2"

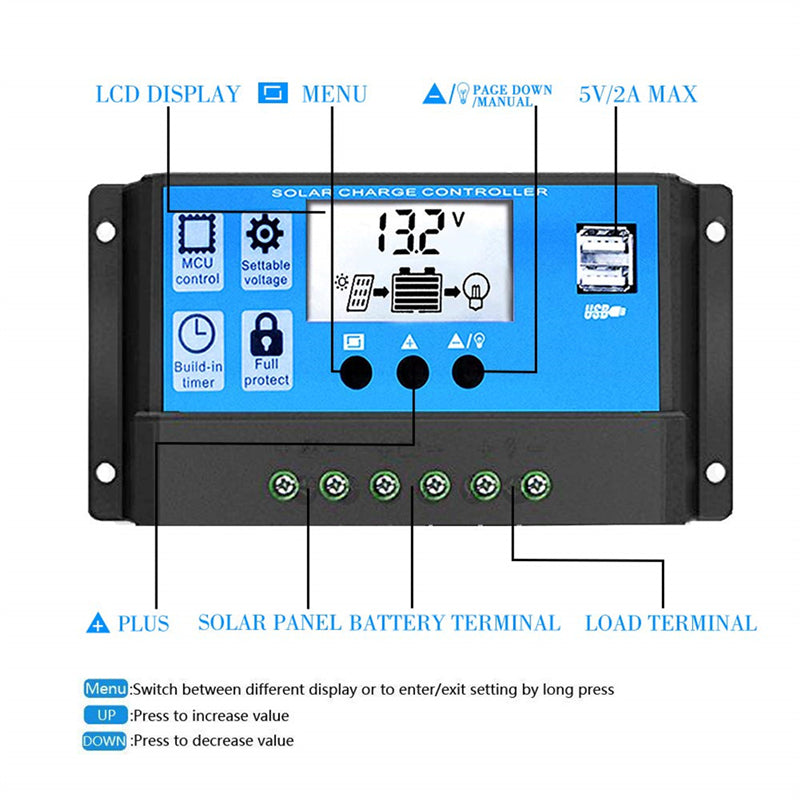

3. 30A 12V 24V Automatic Solar Charge Controller PWM with LCD Controller and Dual USB:
Charge Current: 30A
Product Size: 148.5x78x35mm
Voltage: DC 12V / 24V Auto intelligent conversion
Display: LCD digital display
USB Charger Ports: Dual USB 5V 2.1A
Operating Temperature: -35~+60
Max Solar Input: 12V battery, the highest 23V
Float Charge: 13.7V (defaul, adjustable)
Discharge Stop: 10.7V (defaul, adjustable)
Discharge Reconnect: 12.6V (defaul, adjustable)
Charge Reconnect: 13V
Voltage of Open Light: Solar Panel 8V (Light lights delay)
Voltage of Close Light: Solar Panel 8V (Light off delay)
USB Output: 2 way USB output, 5V/2.5A (MAX)

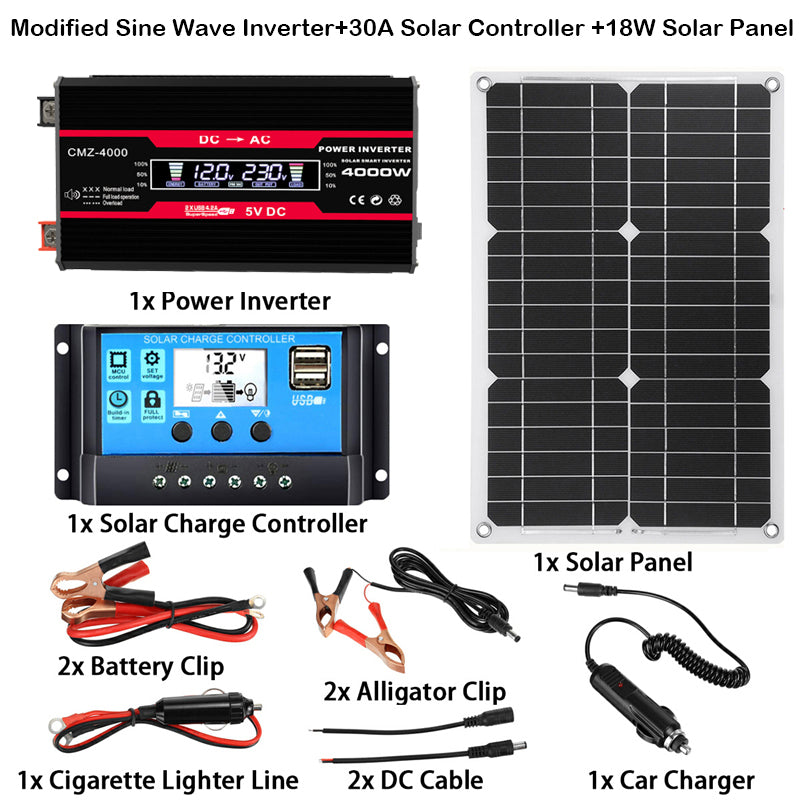

Packing included:
1 x Power Inverter
2 x Battery Clip
1 x Cigarette Lighter Plug(gift)
1 x User Manual
1 x Solar Panel 18W 18V+DC cable + DC alligator clip
1 x Solar Charge Controller 30A 12V/24V
