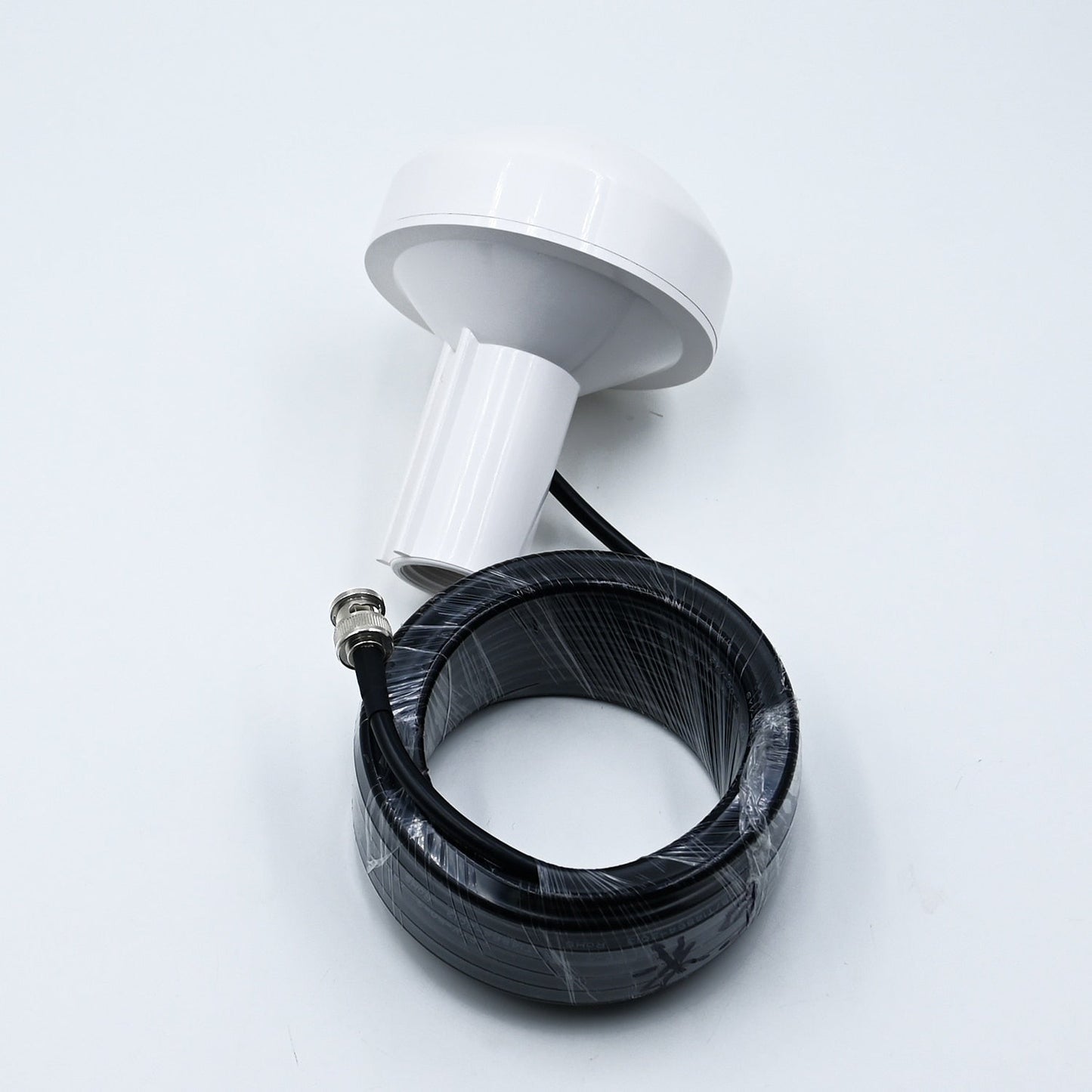

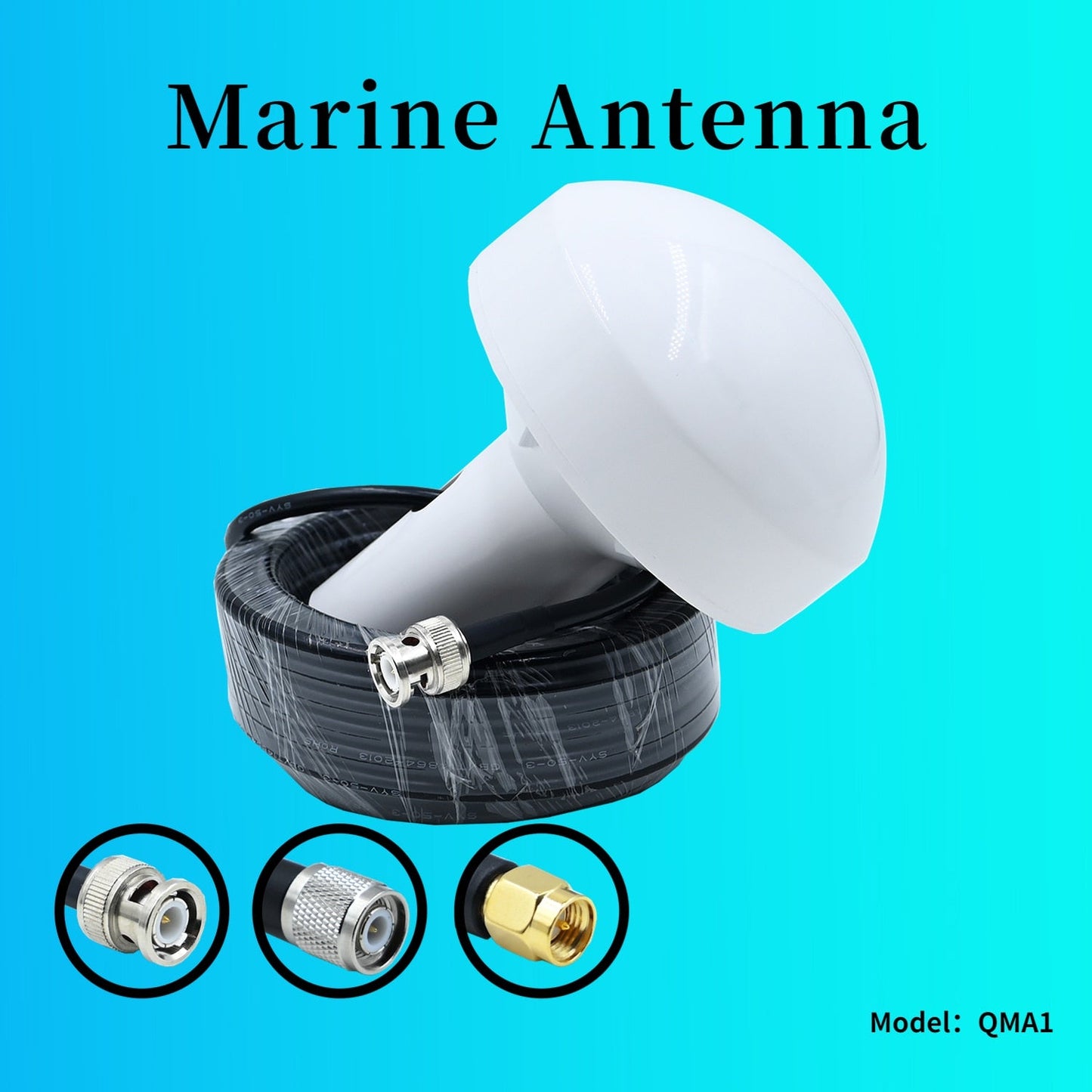

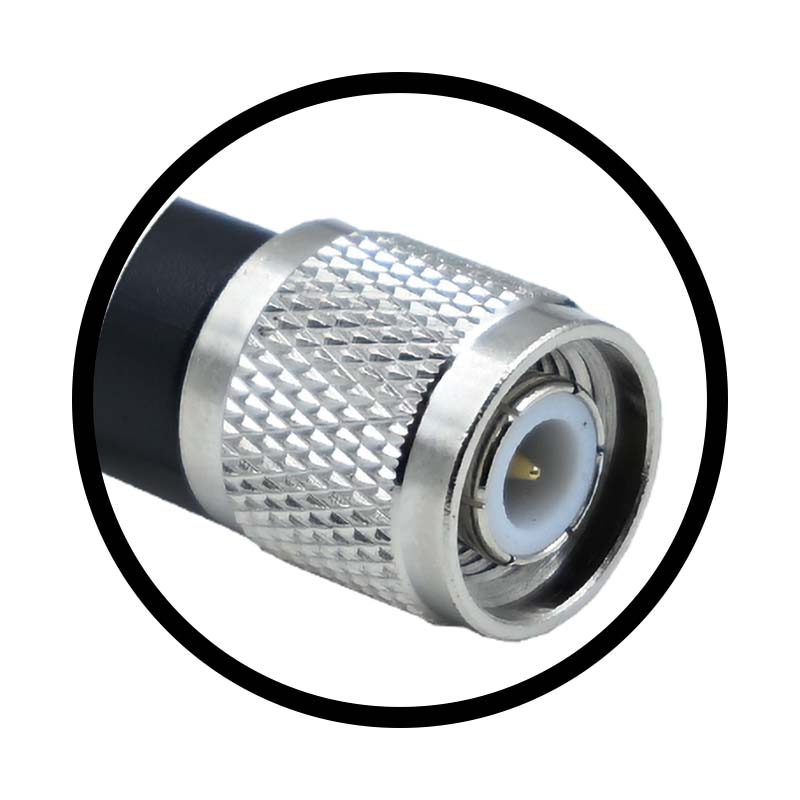

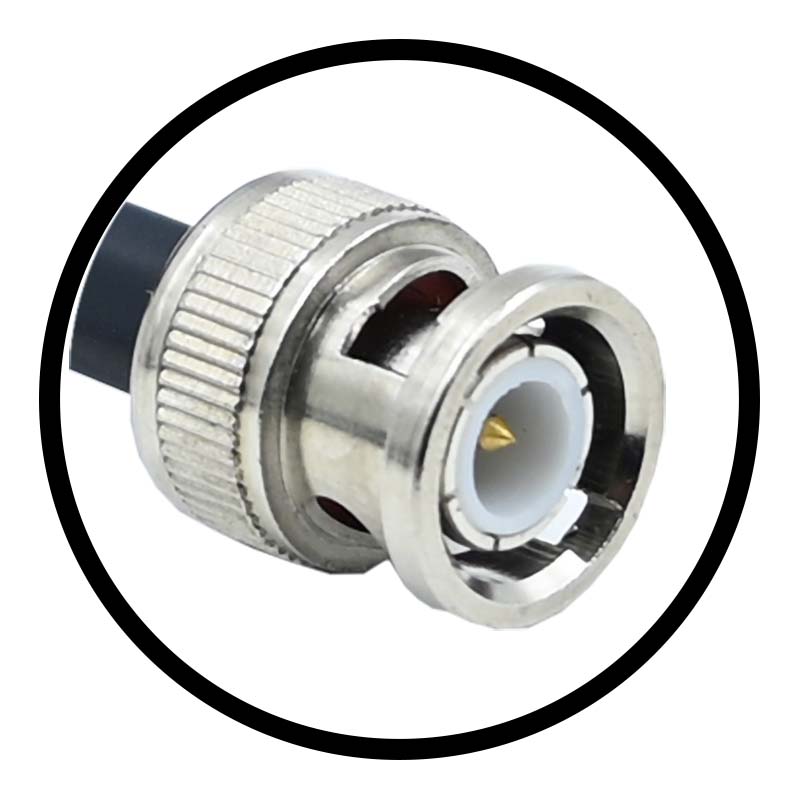

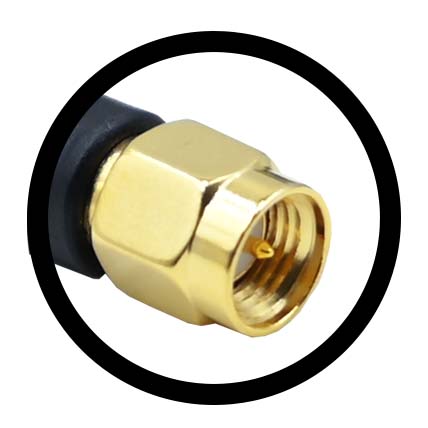

This 30dBi Marine GPS Antenna VHF AIS Antenna is designed for reliable signal reception and transmission for marine applications. The VHF AIS Antenna features a 30dBi gain with SMA, BNC, and TNC connectors that ensures a strong, consistent signal in any marine environment.
30dBi Marine GPS Antenna VHF AIS Antenna BNC SMA TNC,For Car Boat Navigation Timing Antenna,Support GPS GLONASS Galileo BDS L1
SPECIFICATIONS
Frequency range：1561-1601mhz Voltage standing wave ratio：≤1.5 Bandwidth ：±10 MHz ImpedanceImpendence：50 Ω Amplification gain LNA Gain(Without cable)：30dB. Noise figureNoise Figure：≤1.5 Material：ABS Size：As Picture Shown DC voltageDC Voltage：3.0~5.0V DC Working Temperature：-30℃~+85℃ DC current：≤30mA Weight：450g
