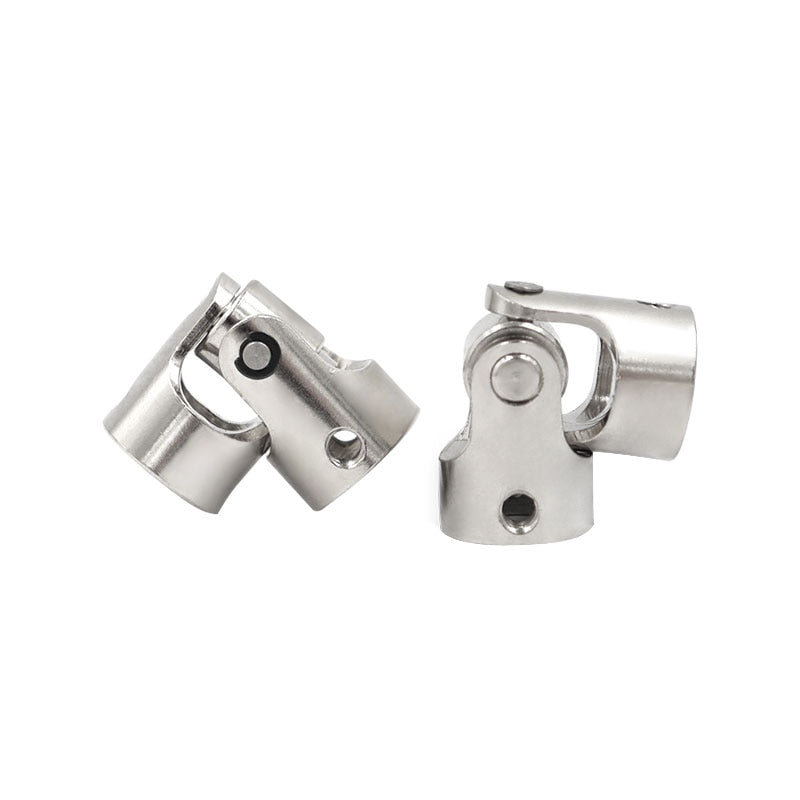

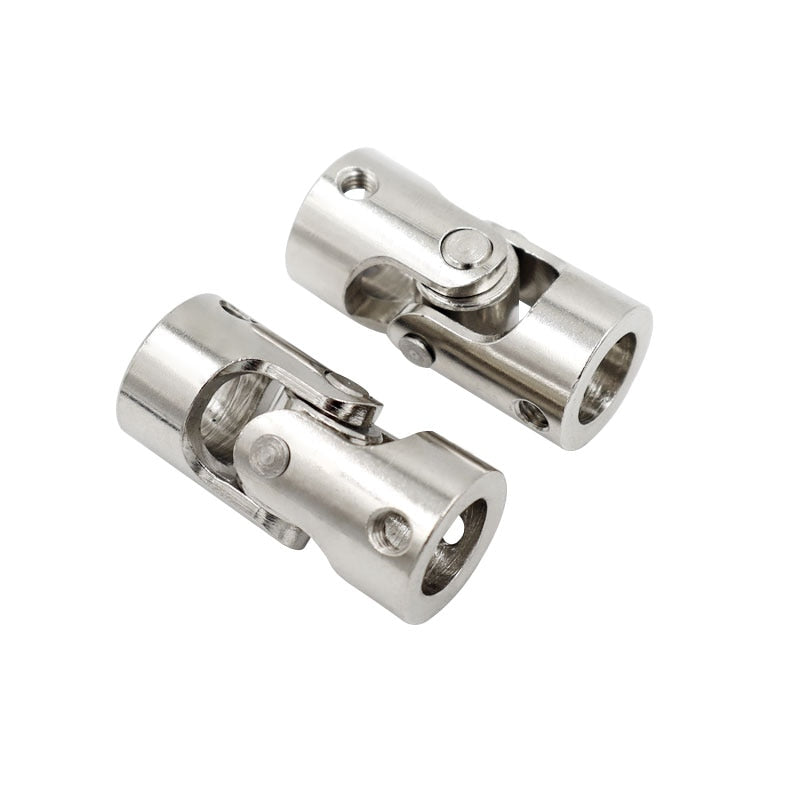

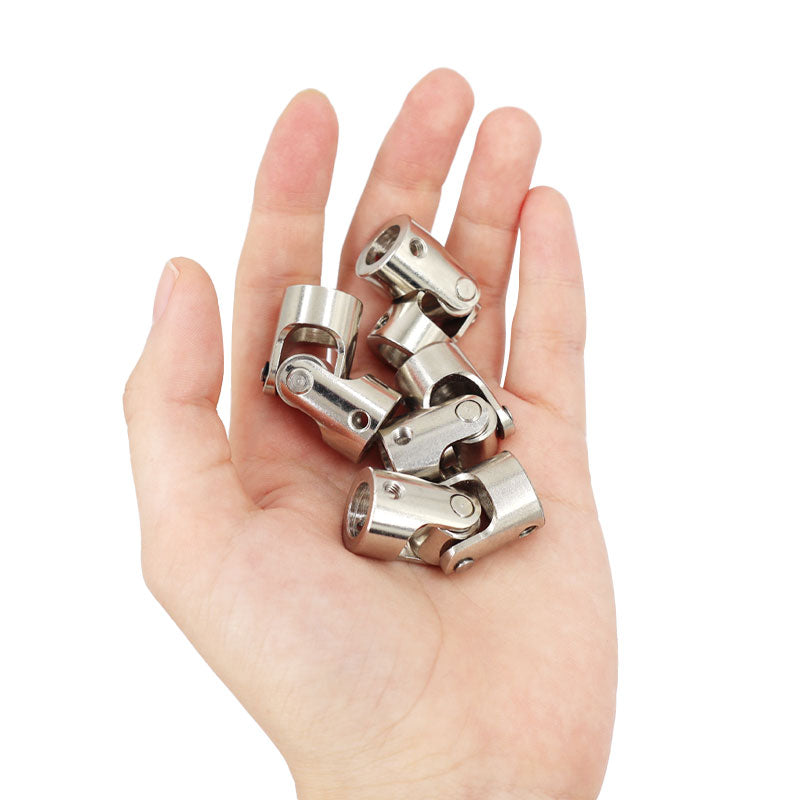

Shaft Coupler Motor Connector Metal Universal Joint Coupling

This Boat Car Shaft Coupler Motor Connector Metal Universal Joint Coupling is perfect for model cars, model ships, robots, and other applications requiring a secure, metal joint connection. Made from durable metal, this connector is suited to direct axis motor use, and provides a reliable joint for long-term use.

Metal joint suited to use direct axis motor,  suitable for model cars, model ships, robots, and other metal adapter to use.

"4mm-6mm" means "one hole diameter of the coupler is 4mm ,the other is 6mm"

2mm-2mm, 2mm-2.3mm, 2.3mm-2.3mm
Universal Joint Outside Diameter: 8mm
Universal Joint Length: 18mm
Side Screw Fixing Hole: M3

2mm-3mm, 2mm-4mm,2.3mm-3mm,2.3mm-4mm, 3mm-3mm,  3mm-3.17mm, 3mm-4mm, 3.17mm-3.17mm, 3.17mm-4mm, 4mm-4mm
Universal Joint Outside Diameter: 9mm
Universal Joint Length: 23mm
Side Screw Fixing Hole: M3

3mm-5mm, 3.17mm-5mm, 4mm-5mm, 4mm-6mm, 5mm-5mm, 5mm-6mm, 6mm-6mm
Universal Joint Outside Diameter: 11mm
Universal Joint Length: 23mm
Side Screw Fixing Hole: M4

5mm-8mm, 6mm-8mm,6.35mm-8mm,  8mm-8mm
Universal Joint Outside Diameter: 14mm
Universal Joint Length: 35mm
Side Screw Fixing Hole: M4
Fixed Clamp Spring Design

8mm-10mm, 10mm-10mm
Universal Joint Outside Diameter: 16mm
Universal Joint Length: 35mm
Side Screw Fixing Hole: M4

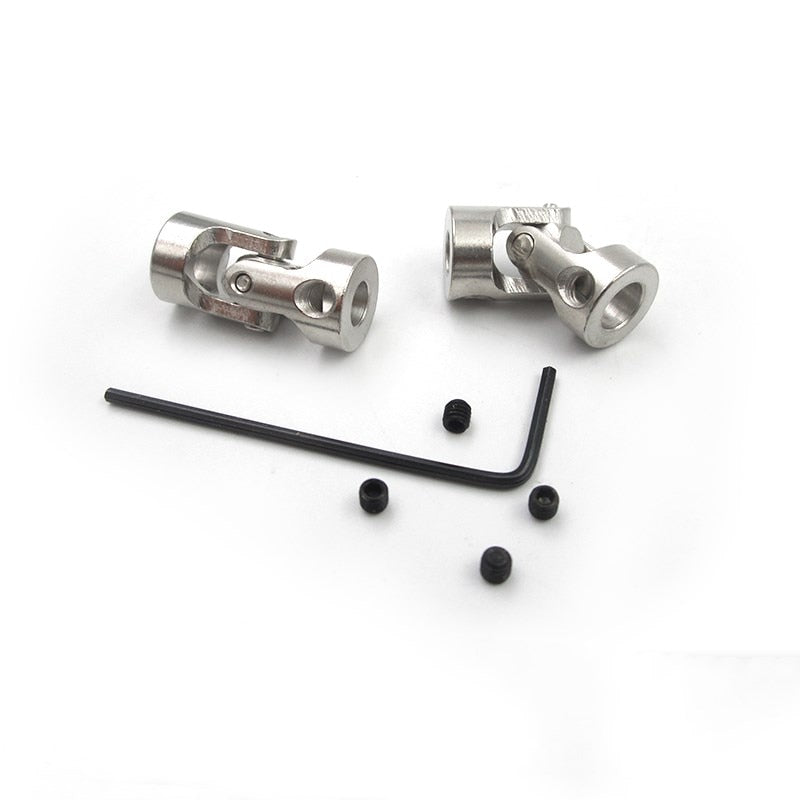

Package Included:

Universal Joint x 1

Screw x 2

Allen Key x 1
